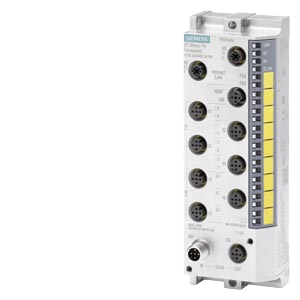

Siemens 6ES7146-6FF00-0AB0 fail-safe digital I/O module
Manufacturer part number: 6ES7146-6FF00-0AB0ESYS SKU: 6ES7146-6FF00-0AB0
Net unit price, VAT 0%
€744.95
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 48 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens 6ES7146-6FF00-0AB0 fail-safe digital I/O module. Key selection data: Number of digital inputs: 8, 8 (one-channel), 4 (two-channel); Number of digital outputs: 3; Output current per channel: 2 A; SIL level: SIL 2 (single-channel), SIL 3 (two-channel); Performance level: PLe; Supply voltage: 24 V DC.
pcs
Information for product selection
Typical applications
- Safety-function signal processing in machine automation
- Emergency-stop and guard circuit implementation
- Replacement in an existing Siemens assembly when article number 6ES7146-6FF00-0AB0 matches
Key specifications
- Communication protocols
- PROFINET, PROFIsafe, SNMP, LLDP
- SIL level
- SIL 2 (single-channel), SIL 3 (two-channel)
- Performance level
- PLe
- Protection rating
- IP65/IP67
- Included components
- eCoding plug-in connector
- Field connectors
- M12
Show additional verified specifications
- Output current per channel
- 2 A
- Supply voltage
- 24 V DC
- Input type
- IEC 61131 type 1
- Number of digital inputs
- 8; 8 (one-channel); 4 (two-channel)
- Number of digital outputs
- 3
- PROFINET interfaces
- 1
Lifecycle
- Status
- Active
Compatibility and related parts
6ES7146-6FF00-0AB0
Replacement: Replacement is allowed only when the target article number is exactly 6ES7146-6FF00-0AB0; this does not establish interchangeability with any other Siemens article.
