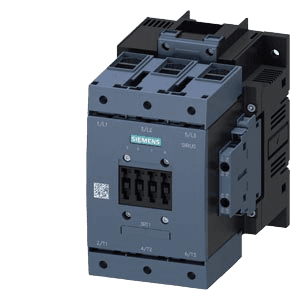

Siemens SIRIUS 3RT1054-1AP36 contactor
Manufacturer part number: 3RT1054-1AP36ESYS SKU: 3RT1054-1AP36
Net unit price, VAT 0%
€226.70
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIRIUS 3RT1054-1AP36 contactor. Key selection data: Operational current AC-3E/AC-3 at 400 V: 115 A; Motor power AC-3E/AC-3 at 400 V: 55 kW; Coil control voltage: 220 ... 240 V AC (50 ... 60 Hz) / DC; Terminal type: box terminal; Number of auxiliary NC contacts: 2.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Controlled switching of motors and electrical loads
- Contactor feeders in machine and control cabinets
- Replacement in an existing Siemens assembly when article number 3RT1054-1AP36 matches
Key specifications
- Motor power AC-3E/AC-3 at 400 V
- 55 kW
- Coil control voltage
- 220 ... 240 V AC (50 ... 60 Hz) / DC
- Operational current AC-3E/AC-3 at 400 V
- 115 A
- Number of poles
- 3
- Terminal type
- box terminal
- Mounting method
- screw fixing
Show additional verified specifications
- Front protection rating
- IP20
- Number of auxiliary NC contacts
- 2
- Number of auxiliary NO contacts
- 2
- Number of main NO contacts
- 3
- Front touch protection
- finger-safe, for vertical contact from the front
- Width
- 120 mm
Lifecycle
- Status
- Active
Compatibility and related parts
3RT1054-1AP36
Replacement: Replacement is allowed only when the target article number is exactly 3RT1054-1AP36; this does not establish interchangeability with any other Siemens article.
