Phoenix Contact 2403869 AXL F BK PN TPS PROFINET bus coupler
Manufacturer part number: 2403869ESYS SKU: 2403869
Net unit price, VAT 0%
€409.23
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 2 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
- Incoming, unallocated stock
- 3 pcs
Informational only. Incoming stock is not included in orderable quantity and no arrival date is promised.

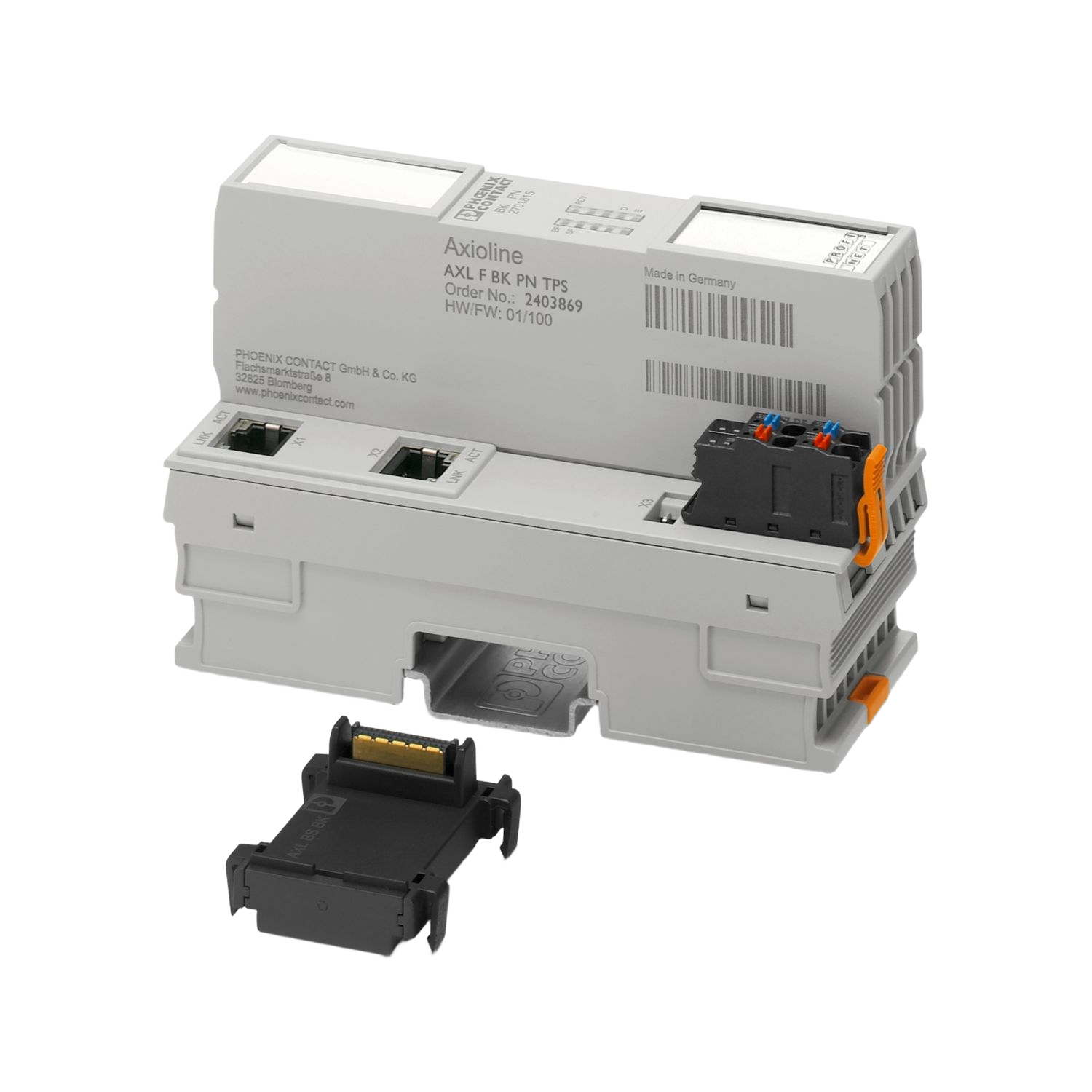

AXL F BK PN TPS links a PROFINET network to an Axioline F remote-I/O station with up to 63 local-bus devices. The coupler provides two 100 Mbit/s RJ45 ports, 24 V DC supply, and IP20 protection for DIN-rail mounting.
pcs
Information for product selection
Typical applications
- Connecting an Axioline F remote-I/O station to PROFINET
- Replacement of a bus coupler in an automation station
- Network connection of distributed industrial I/O signals
Key specifications
- Component type
- Bus coupler
- Product family
- Axioline F
- Network protocol
- PROFINET
- Ethernet port count
- 2
- Ethernet connector
- RJ45
- Transmission speed
- 100 Mbit/s
Show additional verified specifications
- Maximum local-bus devices
- 63
- Supply-voltage range
- 19.2-30 V DC
- Maximum current draw
- 600 mA
- Degree of protection
- IP20
- Mounting method
- DIN rail
- Dimensions W x H x D
- 45 x 126.1 x 74 mm
Lifecycle
- Status
- Active
Compatibility and related parts
Phoenix Contact Axioline F local-bus system
System: Couples a PROFINET network to an Axioline F station containing up to 63 local-bus devices.
