Allen-Bradley (Rockwell Automation)
5069-IB16 | digital input module; number of inputs: 16; input voltage range: 10…32 V DC; input topology: Sinking
Manufacturer part number: 5069-IB16ESYS SKU: 5069IB16
Net unit price, VAT 0%
€283.45
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45

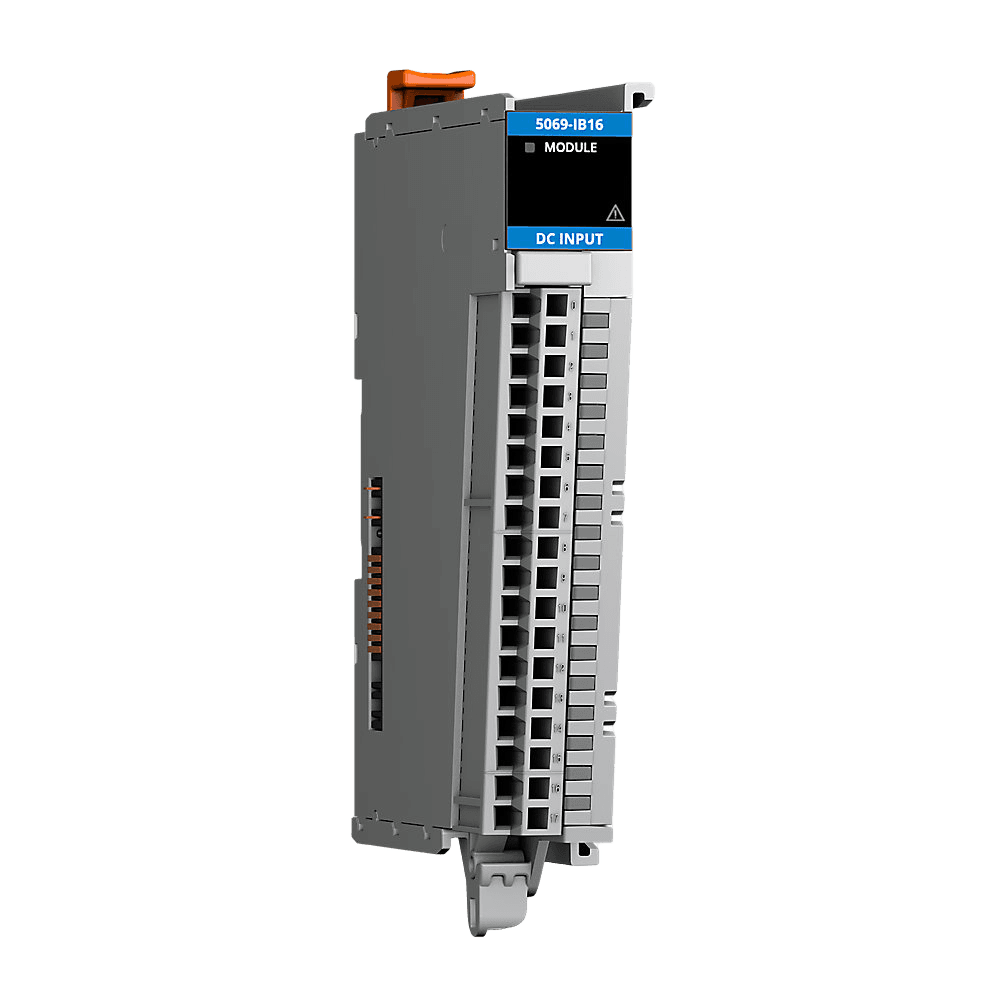

Allen-Bradley (Rockwell Automation) 5069-IB16 is a digital input module. Key selection facts are number of inputs: 16; input voltage range: 10…32 V DC; input topology: Sinking.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use 5069-IB16 in machine input circuits when the design calls for number of inputs: 16.
- Choose 5069-IB16 for machine input circuits that must provide input voltage range: 10…32 V DC.
- Before ordering 5069-IB16, verify input topology: Sinking against the machine input circuits design.
Key specifications
- Product type
- digital input module
- Number of inputs
- 16
- Input topology
- Sinking
- Input voltage range
- 10…32 V DC
- Input current range
- 4…7.4 mA
- Module power
- 3.9 W
Show additional verified specifications
- Isolation voltage
- 250 V continuous
- Input delay, maximum
- 100 µs
- Input signal
- DC
- Required removable terminal block
- 5069-RTB18-SCREW or 5069-RTB18-SPRING
- Device type detail
- Input
- Voltage
- 12/24 V DC
Lifecycle
- Status
- Active
Compatibility and related parts
5069-RTB18-SCREW
Accessory: Compatible 18-pin screw RTB
5069-RTB18-SPRING
Accessory: Compatible 18-pin spring RTB
Official manufacturer documents
- Allen-Bradley (Rockwell Automation) 5069-IB16 official product evidence (Technical document, en)Opens in a new window
- Official product cutsheet (Datasheet, en)Opens in a new window
- Download (PDF) (Datasheet, en)Opens in a new window
- Compact 5000 I/O Modules and EtherNet/IP Adapters Technical Data (5069-TD001) (Manual, en)Opens in a new window
