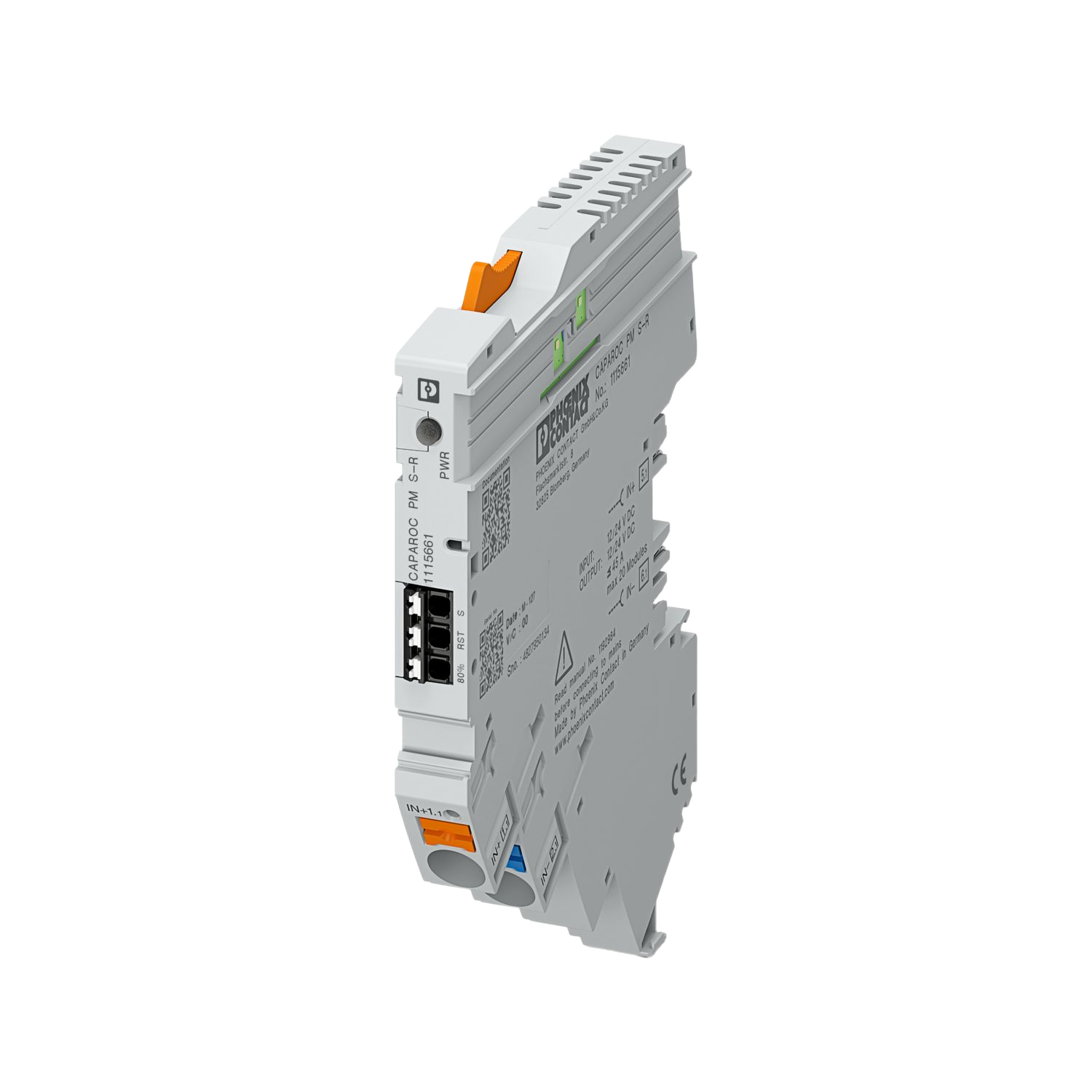

Phoenix Contact 1115661 CAPAROC PM S-R feed-in module
Manufacturer part number: 1115661ESYS SKU: 1115661
Net unit price, VAT 0%
€46.83
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 132 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
CAPAROC PM S-R feeds 12 or 24 V DC into a CAPAROC protection system. It provides a status output and reset input and supports up to 20 protection modules.
pcs
Information for product selection
Typical applications
- Common 24 V DC feed for a CAPAROC system
- Collective fault indication for protected channels
- Remote reset of tripped protection channels
Key specifications
- Rated voltage
- 12 / 24 V DC
- Operating voltage range
- 10-30 V DC
- Rated current
- 45 A
- Maximum system extension
- 20 modules
- Status output maximum current
- 20 mA
- Main-circuit conductor range
- 0.5-16 mm²
Show additional verified specifications
- Degree of protection
- IP20
- Operating temperature
- -30...+65 °C
- Dimensions W x H x D
- 12.4 x 132.4 x 111.3 mm
Lifecycle
- Status
- Active
Compatibility and related parts
CAPAROC
System: Feed-in module for CAPAROC current rails and downstream protection modules.
