Siemens

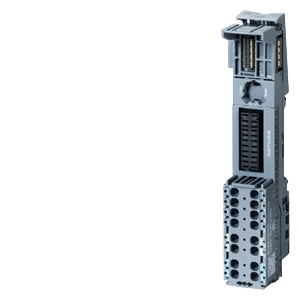

Siemens SIMATIC ET 200SP 6ES7193-6BP20-0BB0 BaseUnit terminal base
Manufacturer part number: 6ES7193-6BP20-0BB0ESYS SKU: 6ES7193-6BP20-0BB0
Net unit price, VAT 0%
€17.26
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 13 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIMATIC ET 200SP 6ES7193-6BP20-0BB0 BaseUnit terminal base. Key selection data: BaseUnit configuration: BU20-P12+A4+0B; AUX-terminal configuration: 4 AUX terminals; Maximum aUX bus current capacity: 10 A; Maximum p1/P2 bus current capacity: 10 A; Maximum process-terminal current capacity: 5 A.
pcs
Information for product selection
Typical applications
- Field termination and potential distribution for ET 200SP modules
- Building a distributed I/O station module row
- Replacement in an existing Siemens assembly when article number 6ES7193-6BP20-0BB0 matches
Key specifications
- BaseUnit configuration
- BU20-P12+A4+0B
- BaseUnit type
- BU type B0
- Terminal type
- push-in terminals
- AUX-terminal configuration
- 4 AUX terminals
- Load-group configuration
- bridged to the left
- Maximum aUX bus current capacity
- 10 A
Show additional verified specifications
- Maximum p1/P2 bus current capacity
- 10 A
- Maximum process-terminal current capacity
- 5 A
- Minimum connectable conductor cross-section
- 0.14 mm²; AWG 26
- Width
- 20 mm
- Height
- 117 mm
- Depth
- 35 mm
Lifecycle
- Status
- Active
Compatibility and related parts
6ES7193-6BP20-0BB0
Replacement: Replacement is allowed only when the target article number is exactly 6ES7193-6BP20-0BB0; this does not establish interchangeability with any other Siemens article.
