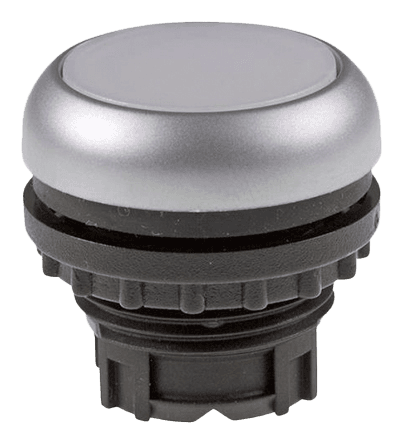

Eaton M22-DL-W white illuminated pushbutton
Manufacturer part number: M22-DL-WESYS SKU: S2335312
Net unit price, VAT 0%
€9.39
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
M22-DL-W is a white, silver-bezel, momentary illuminated pushbutton for a 22.5 mm mounting hole. The flush M22 operator suits demanding panels with IP67, IP69K, NEMA 4X, and NEMA 13 ratings.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Illuminated start or acknowledge button
- Replacement of a white machine-panel pushbutton
- Indicating operating state through pushbutton illumination
Key specifications
- Operator type
- Illuminated pushbutton
- Actuation
- Momentary
- Button color
- White
- Bezel color
- Silver
- Button shape
- Round and flush
- Mounting-hole diameter
- 22.5 mm
Show additional verified specifications
- Environmental rating
- IP67 / IP69K / NEMA 4X / NEMA 13
- Mechanical life
- 5000000 operations
- Dimensions H x W x D
- 0.39 x 1.17 x 1.17 in
Lifecycle
- Status
- Active
Compatibility and related parts
Eaton M22 modular pushbutton system
Product series: Fits the documented M22 22.5 mm modular operator system and accepts its separate contact and light elements.
