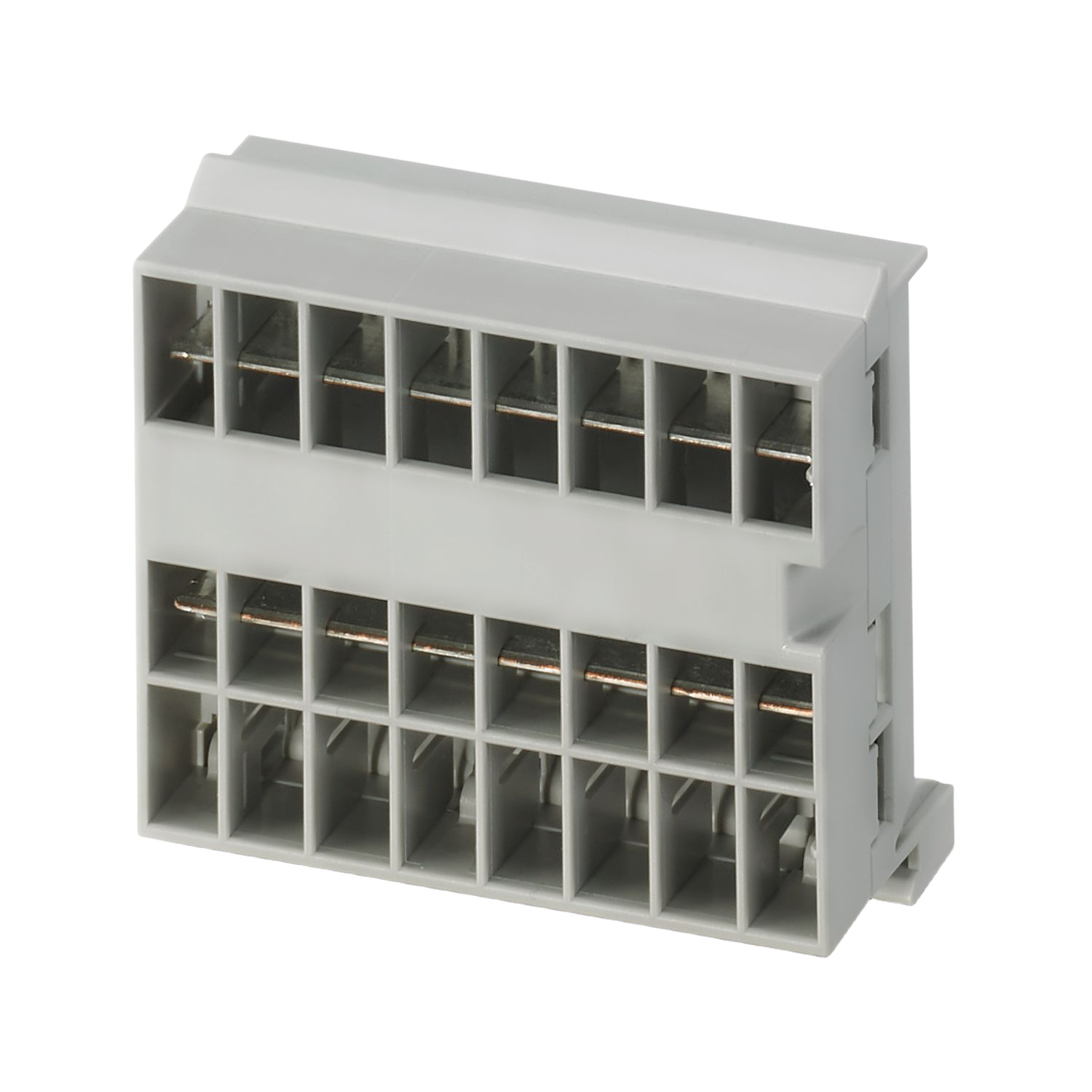

Phoenix Contact 1115672 CAPAROC CR 8 CAPAROC busbar
Manufacturer part number: 1115672ESYS SKU: 1115672
Net unit price, VAT 0%
€21.22
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 120 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
CAPAROC CR 8 is an eight-slot basic current rail for CAPAROC feed-in and protection modules. It mounts on 35 mm DIN rail and is rated for 24 V DC and up to 45 A total current.
pcs
Information for product selection
Typical applications
- Common supply rail for CAPAROC protection modules
- Grouping 24 V DC branches in a control cabinet
- Building the base rail of a CAPAROC system
Key specifications
- Slot count
- 8
- Busbar type
- Basic current rail
- Rated voltage
- 24 V DC
- Rated current
- 45 A
- Width
- 49.4 mm
- Height
- 44 mm
Show additional verified specifications
- Depth
- 22.5 mm
- Degree of protection
- IP20
- DIN rail
- 35 mm
Lifecycle
- Status
- Active
Compatibility and related parts
CAPAROC
System: Basic current rail for the feed-in module and eight downstream CAPAROC module positions.
