Siemens

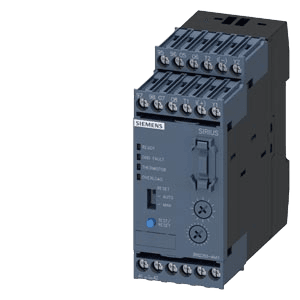

Siemens SIRIUS 3RB2283-4AA1 full motor-protection evaluation unit
Manufacturer part number: 3RB2283-4AA1ESYS SKU: 3RB2283-4AA1
Net unit price, VAT 0%
€181.23
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIRIUS 3RB2283-4AA1 full motor-protection evaluation unit. Key selection data: Adjustable current range: 0.3 ... 630 A; Rated operational current: 630 A; Compatible device-size range: S00 ... S12; Adjustable trip class: CLASS 5 ... 30; Reset mode: manual / automatic; Number of poles: 3.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Stand-alone evaluation for full motor protection
- Class 5-30 protection of S00-S12 motor feeders
- Replacement in an existing Siemens assembly when article number 3RB2283-4AA1 matches
Key specifications
- Compatible device-size range
- S00 ... S12
- Adjustable trip class
- CLASS 5 ... 30
- Reset mode
- manual / automatic
- Adjustable current range
- 0.3 ... 630 A
- Rated operational current
- 630 A
- Mounting method
- stand-alone installation
Show additional verified specifications
- Number of poles
- 3
- Terminal type
- screw-type terminals
- Number of auxiliary NC contacts
- 2
- Number of auxiliary NO contacts
- 2
- Front touch protection
- finger-safe, for vertical contact from the front
- Connectable conductor cross-section
- 0.5 ... 2.5 mm², 2x (0.5 ... 1.5 mm²)
Lifecycle
- Status
- Phase-out
Compatibility and related parts
S00 ... S12
Product series: Compatible device-size range
