Siemens

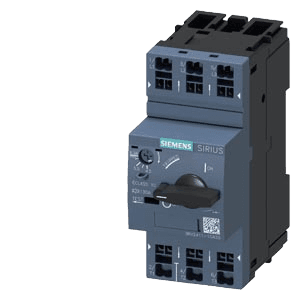

Siemens SIRIUS 3RV2411-1GA20 transformer-protection circuit breaker
Manufacturer part number: 3RV2411-1GA20ESYS SKU: 3RV2411-1GA20
Net unit price, VAT 0%
€38.54
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 2 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIRIUS 3RV2411-1GA20 transformer-protection circuit breaker. Key selection data: Adjustable current range: 4.5 ... 6.3 A; Rated operational current: 6.3 A; Instantaneous short-circuit trip current: 130 A; Frame size: S00; Terminal type: spring-loaded terminals; Compatible device size: S00, S0.
pcs
Information for product selection
Typical applications
- Overload and short-circuit protection of transformers
- Local isolation of transformer circuits in panels
- Replacement in an existing Siemens assembly when article number 3RV2411-1GA20 matches
Key specifications
- Frame size
- S00
- Adjustable current range
- 4.5 ... 6.3 A
- Rated operational current
- 6.3 A
- Instantaneous short-circuit trip current
- 130 A
- Number of poles
- 3
- Trip class
- CLASS 10
Show additional verified specifications
- Rated operational voltage
- 690 V
- Terminal type
- spring-loaded terminals
- Mounting method
- screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
- Protection rating
- IP20
- Compatible device size
- S00, S0
- Overload release type
- thermal
Lifecycle
- Status
- Active
Compatibility and related parts
S00, S0
Product series: Compatible device size
