Beckhoff Automation GmbH & Co. KG

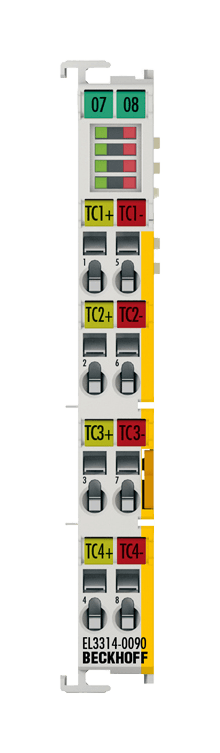

EL3314-0090 | analog input module; safety function: TwinSAFE SC; number of inputs: 4; input filter cut-off frequency: typ. 1 kHz
Net unit price, VAT 0%
€297.60
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
- Incoming, unallocated stock
- 1 pcs
Informational only. Incoming stock is not included in orderable quantity and no arrival date is promised.
Beckhoff Automation GmbH & Co. KG EL3314-0090 is an analog input module. Key selection facts are safety function: TwinSAFE SC; number of inputs: 4; input filter cut-off frequency: typ. 1 kHz.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use EL3314-0090 in sensor measurement channels when the design calls for safety function: TwinSAFE SC.
- Choose EL3314-0090 for sensor measurement channels that must provide number of inputs: 4.
- Before ordering EL3314-0090, verify input filter cut-off frequency: typ. 1 kHz against the sensor measurement channels design.
Key specifications
- Product type
- analog input module
- Safety function
- TwinSAFE SC
- Conversion time
- 10 ms…2.5 s; 250 ms default
- Number of inputs
- 4
- Power supply
- via the E-bus
- Input filter cut-off frequency
- typ. 1 kHz
Show additional verified specifications
- Connection technology
- 2-wire
- Voltage measurement
- ±30/±60/±75 mV
- Resolution
- 16 bit, representation adjustable: 0.1/0.01 °C or 1/2/4 µV per digit
- Network protocol
- EtherCAT
- Temperature measurement (thermocouple)
- type B, C, E, J, K, L, N, R, S, T, U (default setting: type K)
- I/O direction
- Input
Lifecycle
- Status
- Active
Compatibility and related parts
EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, TwinSAFE SC
Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
