Siemens

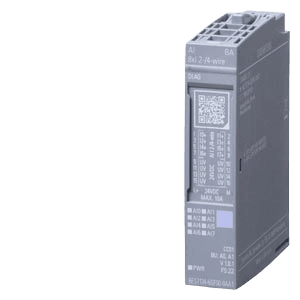

Siemens SIMATIC ET 200SP 6ES7134-6GF00-0AA1 analog input module
Manufacturer part number: 6ES7134-6GF00-0AA1ESYS SKU: 6ES7134-6GF00-0AA1
Net unit price, VAT 0%
€258.46
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
- Incoming, unallocated stock
- 1 pcs
Informational only. Incoming stock is not included in orderable quantity and no arrival date is promised.
Siemens SIMATIC ET 200SP 6ES7134-6GF00-0AA1 analog input module. Key selection data: Number of analog inputs: 8, Single-ended; Supported input signal ranges: 0 ... 20 mA, -20 mA ... +20 mA, 4 mA ... 20 mA; Maximum resolution: 16 bit; Conversion time per channel: 180 / 60 / 50 / 0.625 (67.5 / 22.5 / 18.75) ms.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Connecting analog field signals to an automation system
- Integrating process measurements into distributed I/O
- Replacement in an existing Siemens assembly when article number 6ES7134-6GF00-0AA1 matches
Key specifications
- Number of analog inputs
- 8; Single-ended
- Module variant
- basic
- Supported input signal ranges
- 0 ... 20 mA, -20 mA ... +20 mA, 4 mA ... 20 mA
- Diagnostic scope
- module diagnostics
- Maximum resolution
- 16 bit
- Conversion time per channel
- 180 / 60 / 50 / 0.625 (67.5 / 22.5 / 18.75) ms
Show additional verified specifications
- Supply voltage
- 24 V DC
- Compatible BaseUnit
- bu type a0, a1
- Maximum sensor-supply current
- 0.7 A; total current of all encoders/channels
- Input resistance for 0 ... 20 mA
- 100 Ω
- Width
- 15 mm
- Height
- 73 mm
Lifecycle
- Status
- Active
Compatibility and related parts
bu type a0, a1
System: Compatible BaseUnit
