Beckhoff Automation GmbH & Co. KG

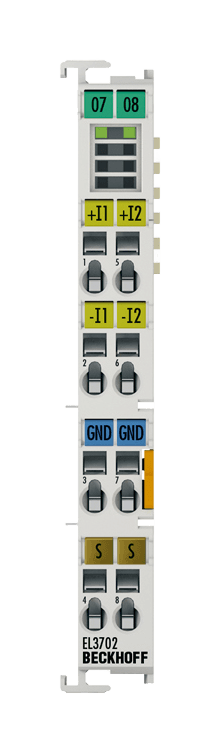

EL3702 | analog input module; number of inputs: 2 (differential); signal voltage: -10…+10 V; number of channels: 2
Manufacturer part number: EL3702ESYS SKU: EL3702
Net unit price, VAT 0%
€324.60
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 2 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Beckhoff Automation GmbH & Co. KG EL3702 is an analog input module. Key selection facts are number of inputs: 2 (differential); signal voltage: -10…+10 V; number of channels: 2.
pcs
Information for product selection
Typical applications
- Use EL3702 in sensor measurement channels when the design calls for number of inputs: 2 (differential).
- Choose EL3702 for sensor measurement channels that must provide signal voltage: -10…+10 V.
- Before ordering EL3702, verify number of channels: 2 against the sensor measurement channels design.
Key specifications
- Product type
- analog input module
- Number of inputs
- 2 (differential)
- Power supply
- via the E-bus
- Signal voltage
- -10…+10 V
- Max. sampling rate
- max. 10 µs/100 ksps (per channel, simultaneously)
- Oversampling factor
- n = 1…100 selectable (max. 100 ksamples/s)
Show additional verified specifications
- Input signal bandwidth
- 0…30 kHz recommended
- Distributed clocks
- yes
- Distributed clock accuracy
- << 1 µs
- Internal resistance
- > 200 kΩ
- Network protocol
- EtherCAT
- Number of channels
- 2
Lifecycle
- Status
- Active
Compatibility and related parts
EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, oversampling
Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
