Siemens

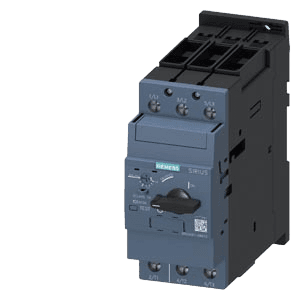

Siemens SIRIUS 3RV2431-4BA10 transformer-protection circuit breaker
Manufacturer part number: 3RV2431-4BA10ESYS SKU: 3RV2431-4BA10
Net unit price, VAT 0%
€83.03
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 2 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 09:30
- Incoming, unallocated stock
- 1 pcs
Informational only. Incoming stock is not included in orderable quantity and no arrival date is promised.
Siemens SIRIUS 3RV2431-4BA10 transformer-protection circuit breaker. Key selection data: Adjustable current range: 14 ... 20 A; Rated operational current: 20 A; Instantaneous short-circuit trip current: 400 A; Frame size: S2; Terminal type: screw-type terminals; Compatible device size: S2.
pcs
Information for product selection
Typical applications
- Overload and short-circuit protection of transformers
- Local isolation of transformer circuits in panels
- Replacement in an existing Siemens assembly when article number 3RV2431-4BA10 matches
Key specifications
- Instantaneous short-circuit trip current
- 400 A
- Frame size
- S2
- Adjustable current range
- 14 ... 20 A
- Rated operational current
- 20 A
- Number of poles
- 3
- Trip class
- CLASS 10
Show additional verified specifications
- Rated operational voltage
- 690 V
- Terminal type
- screw-type terminals
- Mounting method
- screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
- Protection rating
- IP00
- Compatible device size
- S2
- Overload release type
- thermal
Lifecycle
- Status
- Active
Compatibility and related parts
S2
Product series: Compatible device size
