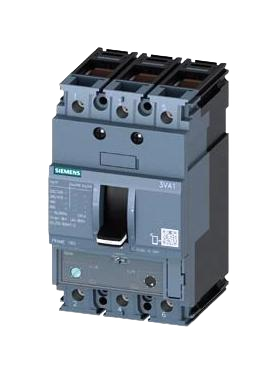

Siemens 3VA1112-5ED36-0AA0 molded-case circuit breaker
Manufacturer part number: 3VA1112-5ED36-0AA0ESYS SKU: 3VA1112-5ED36-0AA0
Net unit price, VAT 0%
€280.86
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 1 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
Siemens 3VA1112-5ED36-0AA0 molded-case circuit breaker. Key selection data: Rated current In: 125 A; Breaking capacity at 415 V: 55 kA; Overload-protection setting Ir: 125 A permanently set; Instantaneous short-circuit setting Ii: 10 x In; Number of poles: 3; Maximum main-circuit operating voltage AC: 690 V AC.
pcs
Information for product selection
Typical applications
- Overcurrent and short-circuit protection of electrical circuits
- Branch circuits in panels and machinery
- Replacement in an existing Siemens assembly when article number 3VA1112-5ED36-0AA0 matches
Key specifications
- Rated current In
- 125 A
- Overload-protection setting Ir
- 125 A permanently set
- Instantaneous short-circuit setting Ii
- 10 x In
- Maximum main-circuit operating voltage AC
- 690 V AC
- Maximum main-circuit operating voltage DC
- 500 V DC
- Number of poles
- 3
Show additional verified specifications
- Breaking capacity at 240 V
- 85 kA
- Breaking capacity at 415 V
- 55 kA
- Terminal type
- front terminal
- Front protection rating
- IP40
- Connectable conductor cross-section
- 1 x (1.5 ... 70 mm²)
- Insulation voltage
- 800 V
Lifecycle
- Status
- Active
Compatibility and related parts
3VA1112-5ED36-0AA0
Replacement: Replacement is allowed only when the target article number is exactly 3VA1112-5ED36-0AA0; this does not establish interchangeability with any other Siemens article.
