Control Techniques

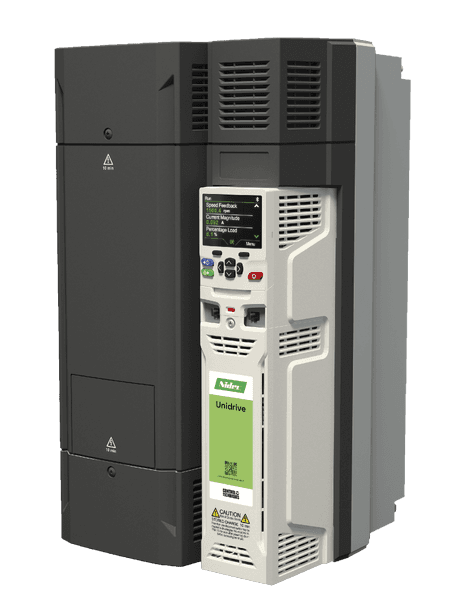

Control Techniques Unidrive M700 M700-074-00660 AC drive
Net unit price, VAT 0%
€3,029.23
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Three-phase 380 to 480 VAC Unidrive M700 drive, frame 7, rated 30 kW and 66 A in heavy-duty operation. The exact current, frame and braking limits are retained for replacement selection.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Exact-MPN replacement in a 400 V variable-speed drive installation
- Motor-speed and torque control in industrial machinery
- Critical spare stocking for a documented Control Techniques drive frame
Key specifications
- Input voltage
- 380 to 480 VAC
- Input phases
- 3
- Heavy-duty motor power
- 30 kW
- Normal-duty motor power
- 37 kW
- Heavy-duty output current
- 66 A
- Normal-duty output current
- 79 A
Show additional verified specifications
- Heavy-duty overload
- 150%
- Frame size
- 7
- Dimensions (W x H x D)
- 270 x 557 x 280 mm
- Weight
- 28 kg
- Protection rating
- IP20
- Minimum braking resistance
- 7.5 ohm
Lifecycle
- Status
- Active
Compatibility and related parts
Unidrive M700 M700-074-00660 exact rated variant
Replacement: For replacement only where the installed unit is the same M700-074-00660 rated variant. Verify the complete order code, 380 to 480 VAC supply, frame 7, motor current and minimum braking resistance before replacement; no interchangeability with other variants is asserted.
