Siemens

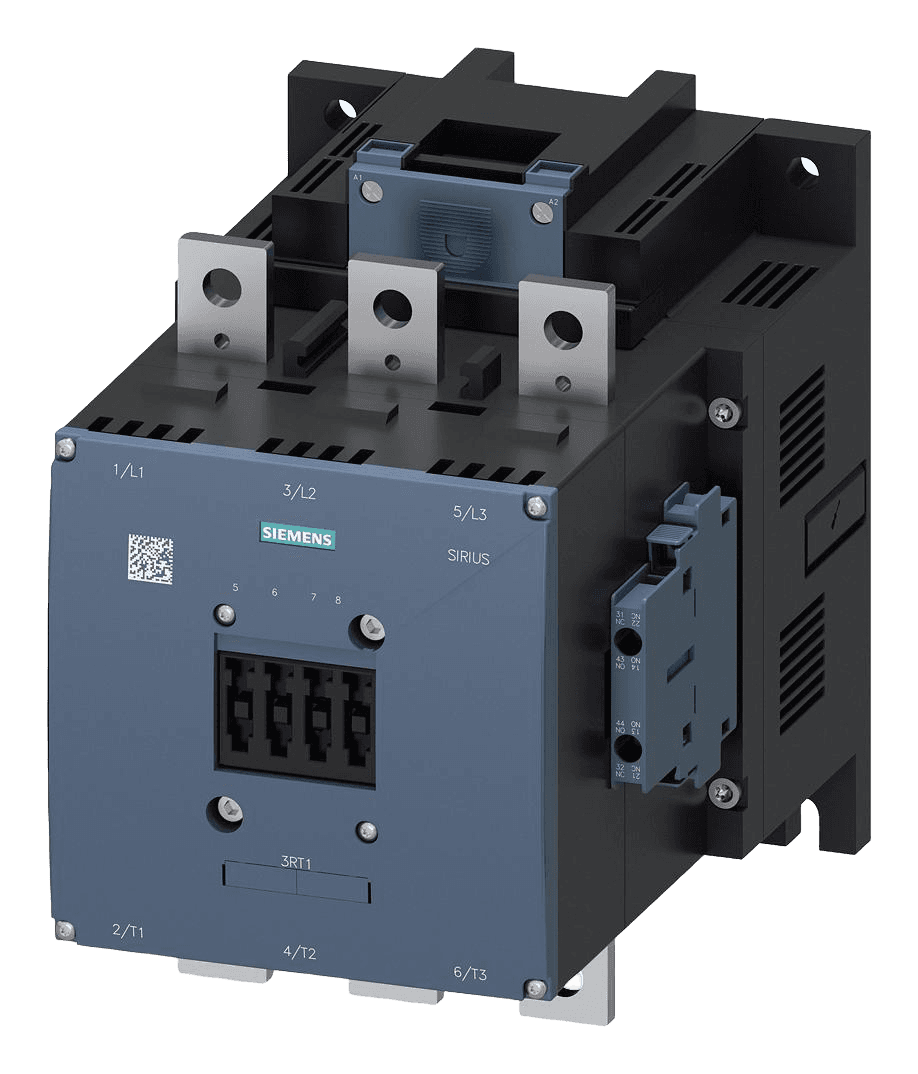

Siemens SIRIUS 3RT1476-6AP36 AC-1 contactor
Manufacturer part number: 3RT1476-6AP36ESYS SKU: 3RT1476-6AP36
Net unit price, VAT 0%
€1,550.77
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 1 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIRIUS 3RT1476-6AP36 AC-1 contactor. Key selection data: Operational current AC-1: 690 A; Operational voltage AC-1: 690 V; Coil control voltage: 220 ... 240 V AC (50 ... 60 Hz) / DC; Number of auxiliary NC contacts: 2; Number of auxiliary NO contacts: 2; Number of poles: 3.
pcs
Information for product selection
Typical applications
- Switching resistive and slightly inductive AC-1 loads
- Controlled switching of large heating and distribution loads
- Replacement in an existing Siemens assembly when article number 3RT1476-6AP36 matches
Key specifications
- Coil control voltage
- 220 ... 240 V AC (50 ... 60 Hz) / DC
- Operational current AC-1
- 690 A
- Operational voltage AC-1
- 690 V
- Number of poles
- 3
- Terminal type
- screw-type terminals
- Mounting method
- screw fixing
Show additional verified specifications
- Front protection rating
- IP00; IP20 with box terminal/cover
- Number of auxiliary NC contacts
- 2
- Number of auxiliary NO contacts
- 2
- Number of main NO contacts
- 3
- Width
- 160 mm
- Front touch protection
- finger-safe, for vertical contact from the front with box terminal/cover
Lifecycle
- Status
- Active
Compatibility and related parts
3RT1476-6AP36
Replacement: Replacement is allowed only when the target article number is exactly 3RT1476-6AP36; this does not establish interchangeability with any other Siemens article.
