Siemens

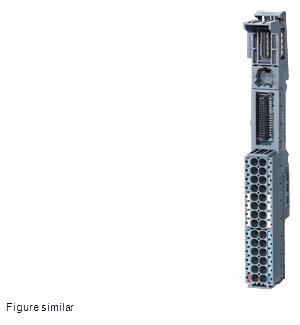

Siemens SIMATIC ET 200SP 6ES7193-6BP40-0BA1 BaseUnit terminal base
Manufacturer part number: 6ES7193-6BP40-0BA1ESYS SKU: 6ES7193-6BP40-0BA1
Net unit price, VAT 0%
€30.32
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 9 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 09:25
Siemens SIMATIC ET 200SP 6ES7193-6BP40-0BA1 BaseUnit terminal base. Key selection data: BaseUnit configuration: BU15-P16+A0+12B/T; Number of add-on terminals: 2x 5; Temperature acquisition: yes; Maximum p1/P2 bus current capacity: 10 A; Maximum process-terminal current capacity: 2 A; Terminal type: push-in terminals.
pcs
Information for product selection
Typical applications
- Field termination and potential distribution for ET 200SP modules
- Building a distributed I/O station module row
- Replacement in an existing Siemens assembly when article number 6ES7193-6BP40-0BA1 matches
Key specifications
- BaseUnit configuration
- BU15-P16+A0+12B/T
- BaseUnit type
- BU type A1
- Terminal type
- push-in terminals
- Number of add-on terminals
- 2x 5
- Temperature acquisition
- yes
- Load-group configuration
- bridged to the left
Show additional verified specifications
- Number of process terminals
- 16
- New potential group
- no
- Supply voltage
- 24 V DC
- Maximum p1/P2 bus current capacity
- 10 A
- Maximum process-terminal current capacity
- 2 A
- Minimum connectable conductor cross-section
- 0.14 mm²; AWG 26
Lifecycle
- Status
- Active
Compatibility and related parts
6ES7193-6BP40-0BA1
Replacement: Replacement is allowed only when the target article number is exactly 6ES7193-6BP40-0BA1; this does not establish interchangeability with any other Siemens article.
