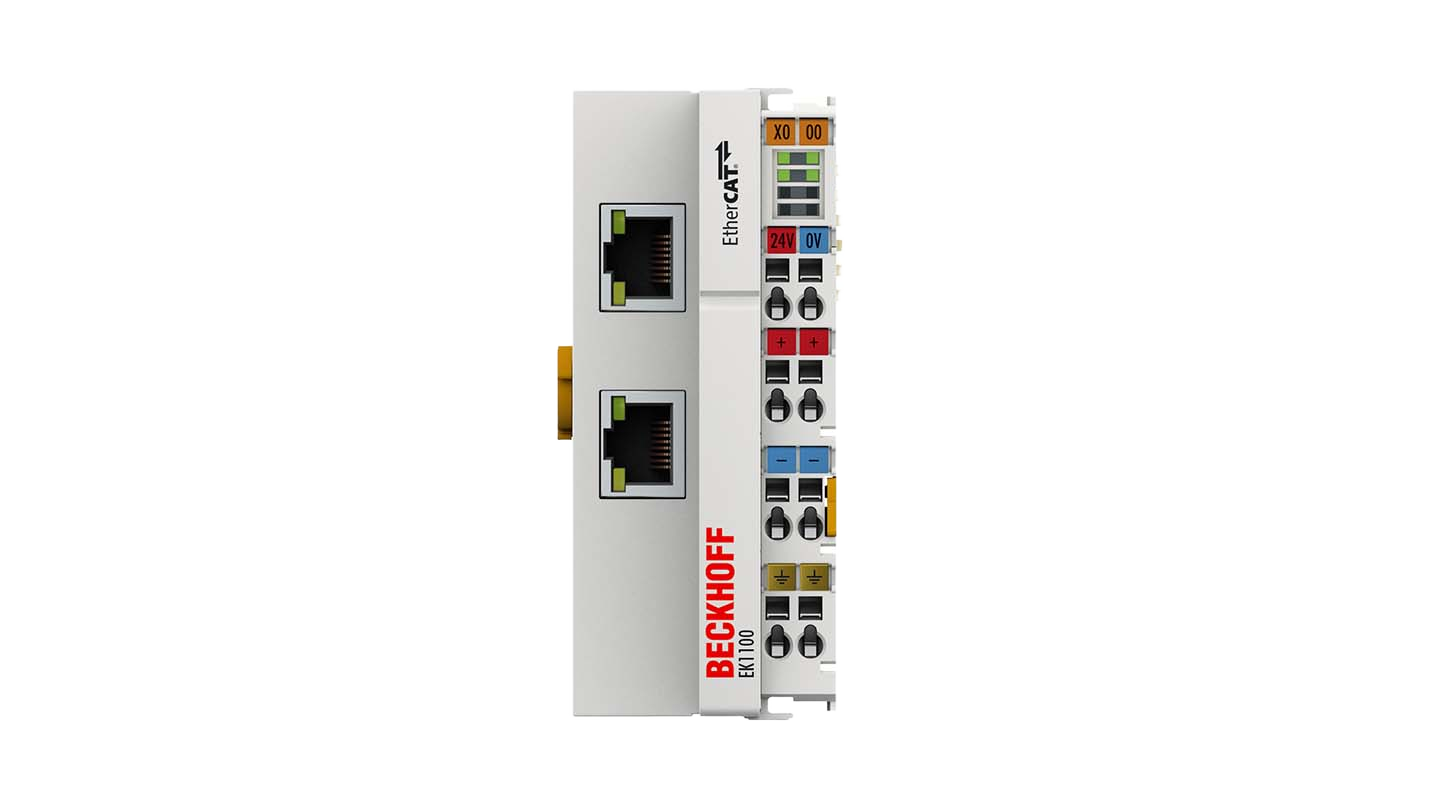

EK1100 | EtherCAT coupler; task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks; distance between stations: max. 100 m (100BASE-TX), product image 1

Beckhoff Automation GmbH & Co. KG

EK1100 | EtherCAT coupler; task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks; distance between stations: max. 100 m (100BASE-TX)

Manufacturer part number: EK1100ESYS SKU: EK1100
Open the manufacturer's product pageOpens in a new window

Net unit price, VAT 0%

€133.68

VAT 25.5% and delivery are shown separately in the request summary.

Current availability

Current available stock: 0 pcs
Minimum order
1 pcs
Order increment
1 pcs
Availability checked
6 Sept 2026, 01:55

Beckhoff Automation GmbH & Co. KG EK1100 is an EtherCAT coupler. Key selection facts are task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks; transmission medium: Ethernet/EtherCAT cable (min. Cat.5), shielded.

Direct ordering is unavailable for this item.

Send the part number and quantity to ESYS for availability or compatibility confirmation.

pcs

Information for product selection

Typical applications

  • Use EK1100 in the documented equipment configuration when the design calls for task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks.
  • Choose EK1100 for the documented equipment configuration that must provide transmission medium: Ethernet/EtherCAT cable (min. Cat.5), shielded.
  • Before ordering EK1100, verify distance between stations: max. 100 m (100BASE-TX) against the the documented equipment configuration design.

Key specifications

Product type
EtherCAT coupler
Task within EtherCAT system
coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks
Transmission medium
Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations
max. 100 m (100BASE-TX)
Number of EtherCAT Terminals
up to 65,534
Protocol
EtherCAT
Show additional verified specifications
Propagation delay
approx. 1 µs
Transmission rate
100 Mbit/s
Bus interface
2 x RJ45
Power supply
24 V DC (-15%/+20%)

Lifecycle

Status
Active

Compatibility and related parts

  • EtherCAT CouplerPreferred type

    Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
