Rittal

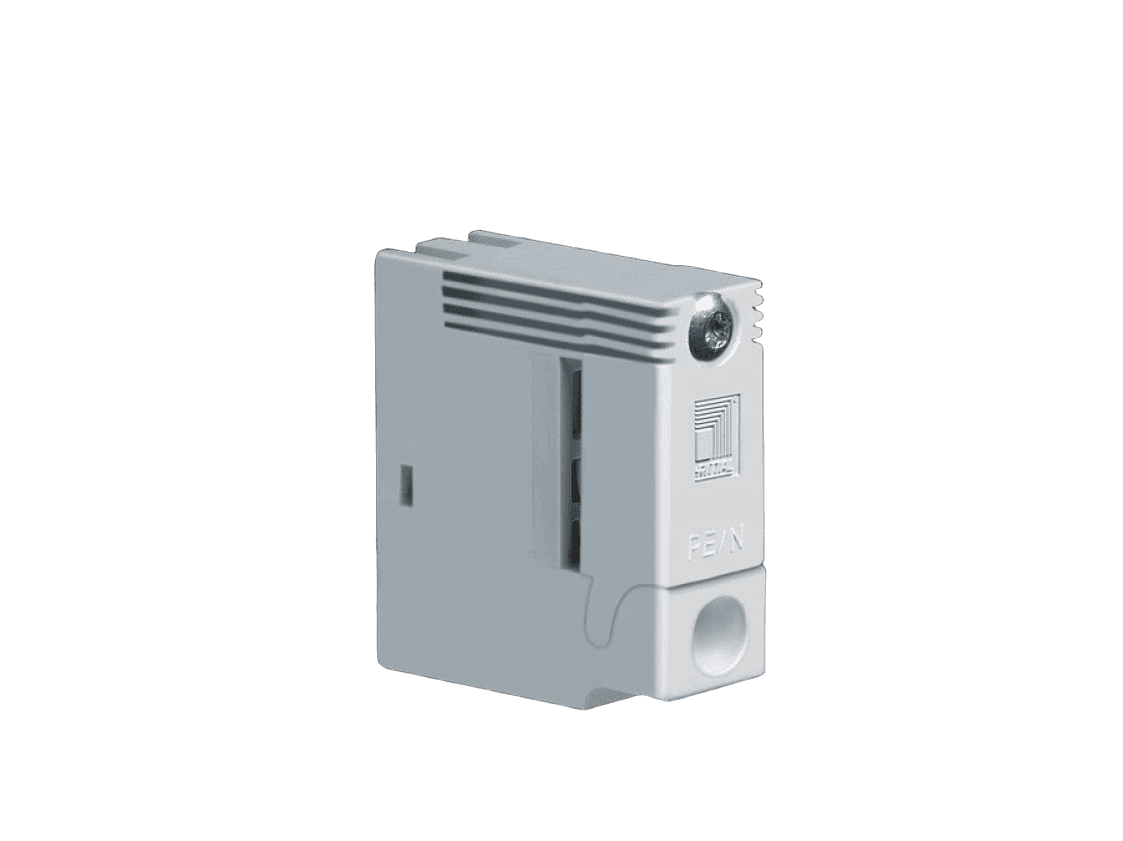

Rittal 9340030 single-pole busbar support
Manufacturer part number: 9340030ESYS SKU: 9340030
Net unit price, VAT 0%
€16.68
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Rittal 9340030 is the exact single-pole busbar support for supporting flat copper busbars in RiLine systems. Key values: Number of poles: 1; Rated AC voltage: 1000 V AC; Rated DC voltage: 1500 V DC; Permitted busbar sizes: 12 x 5/10 mm or 15 x 5 to 30 x 10 mm; Material: Polyamide.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Exact-order-code replacement in equipment used for supporting flat copper busbars in RiLine systems
- New installation specified for exact order code Rittal 9340030
- Maintenance stock for installed Rittal 9340030 units
Key specifications
- Number of poles
- 1
- Rated AC voltage
- 1000 V AC
- Rated DC voltage
- 1500 V DC
- Permitted busbar sizes
- 12 x 5/10 mm or 15 x 5 to 30 x 10 mm
- Material
- Polyamide
- Flammability class
- UL 94 V-0
Show additional verified specifications
- Pack quantity
- 4
- Compatible system
- RiLine 60 mm busbar system
Lifecycle
- Status
- Active
Compatibility and related parts
RiLine 60 mm busbar system
System: Compatible system: RiLine 60 mm busbar system
