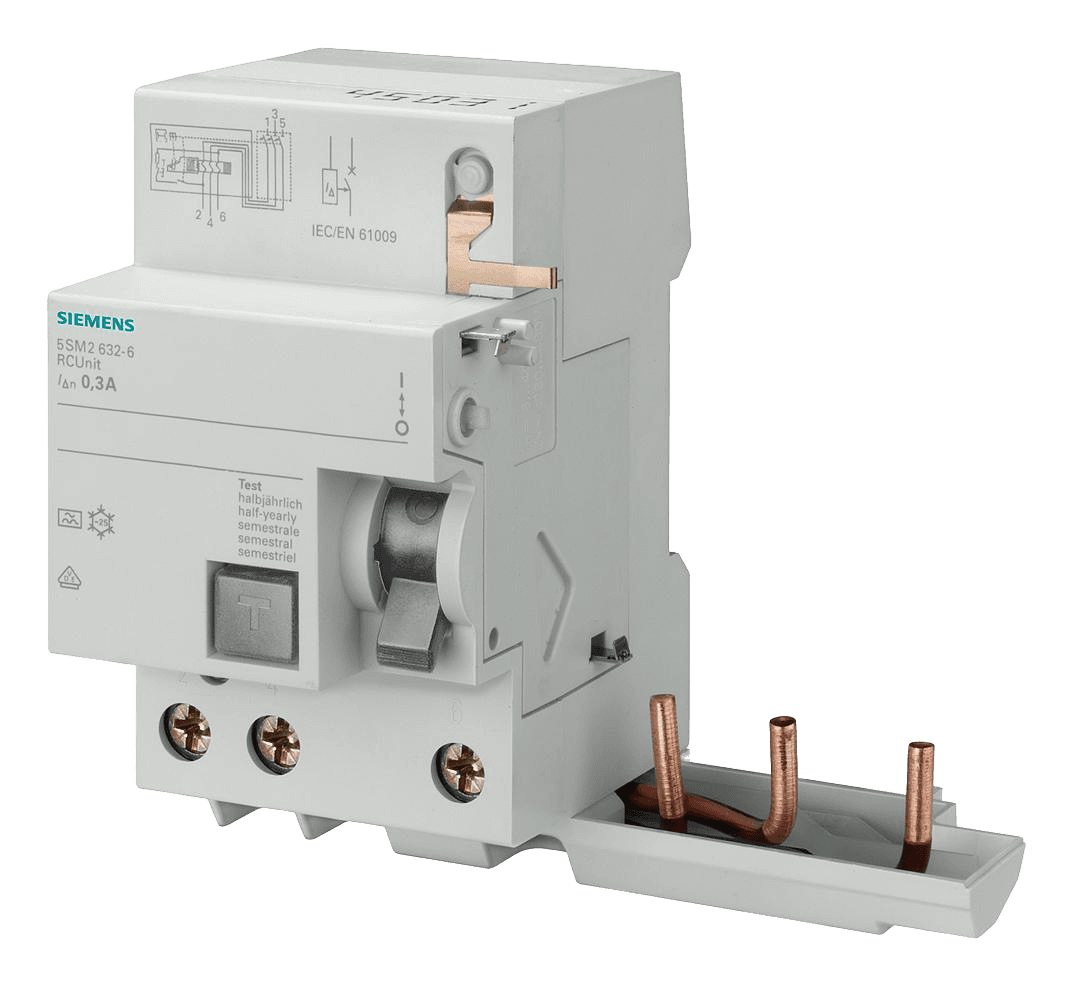

Siemens 5SM2635-6 add-on residual-current unit
Manufacturer part number: 5SM2635-6ESYS SKU: 5SM2635-6
Net unit price, VAT 0%
€146.40
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens 5SM2635-6 add-on residual-current unit. Key selection data: Residual-current sensitivity: 300 mA; Residual-current type: A; Rated current: 63 A; Number of poles: 3; Compatible device series: 5SY; Rated voltage: 400 V AC.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Adding residual-current protection to a compatible 5SY miniature circuit breaker
- Adding personal or fire protection to a 5SY assembly
- Replacement in an existing Siemens assembly when article number 5SM2635-6 matches
Key specifications
- Residual-current sensitivity
- 300 mA
- Compatible device series
- 5SY
- Residual-current type
- A
- Rated current
- 63 A
- Rated voltage
- 400 V AC
- Number of poles
- 3
Show additional verified specifications
- Width
- 54 mm
- Height
- 90 mm
- Frequency
- 50 Hz
- Mounting method
- din rail
- Depth
- 70 mm
- Protection rating
- IP20, if the distribution board is installed, with connected conductors
Lifecycle
- Status
- Active
Compatibility and related parts
5SY
Product series: Compatible device series
