Siemens

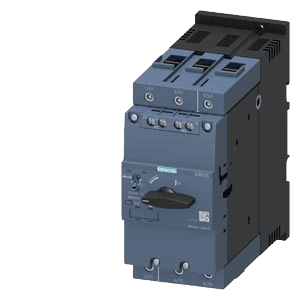

Siemens SIRIUS 3RV2041-4KA15 motor-protection circuit breaker
Manufacturer part number: 3RV2041-4KA15ESYS SKU: 3RV2041-4KA15
Net unit price, VAT 0%
€128.92
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:50
Siemens SIRIUS 3RV2041-4KA15 motor-protection circuit breaker. Key selection data: Adjustable current range: 57 ... 75 A; Rated operational current: 75 A; Instantaneous short-circuit trip current: 975 A; Frame size: S3; Terminal type: screw-type terminals; Included auxiliary-switch NO contacts: 1.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Overload and short-circuit protection of motor feeders
- Local isolation of machine motor circuits
- Replacement in an existing Siemens assembly when article number 3RV2041-4KA15 matches
Key specifications
- Included auxiliary-switch NO contacts
- 1
- Included auxiliary-switch NC contacts
- 1
- Frame size
- S3
- Adjustable current range
- 57 ... 75 A
- Rated operational current
- 75 A
- Instantaneous short-circuit trip current
- 975 A
Show additional verified specifications
- Number of poles
- 3
- Trip class
- CLASS 10
- Rated operational voltage
- 690 V
- Terminal type
- screw-type terminals
- Mounting method
- screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
- Protection rating
- IP00
Lifecycle
- Status
- Active
Compatibility and related parts
3RV2041-4KA15
Replacement: Replacement is allowed only when the target article number is exactly 3RV2041-4KA15; this does not establish interchangeability with any other Siemens article.
