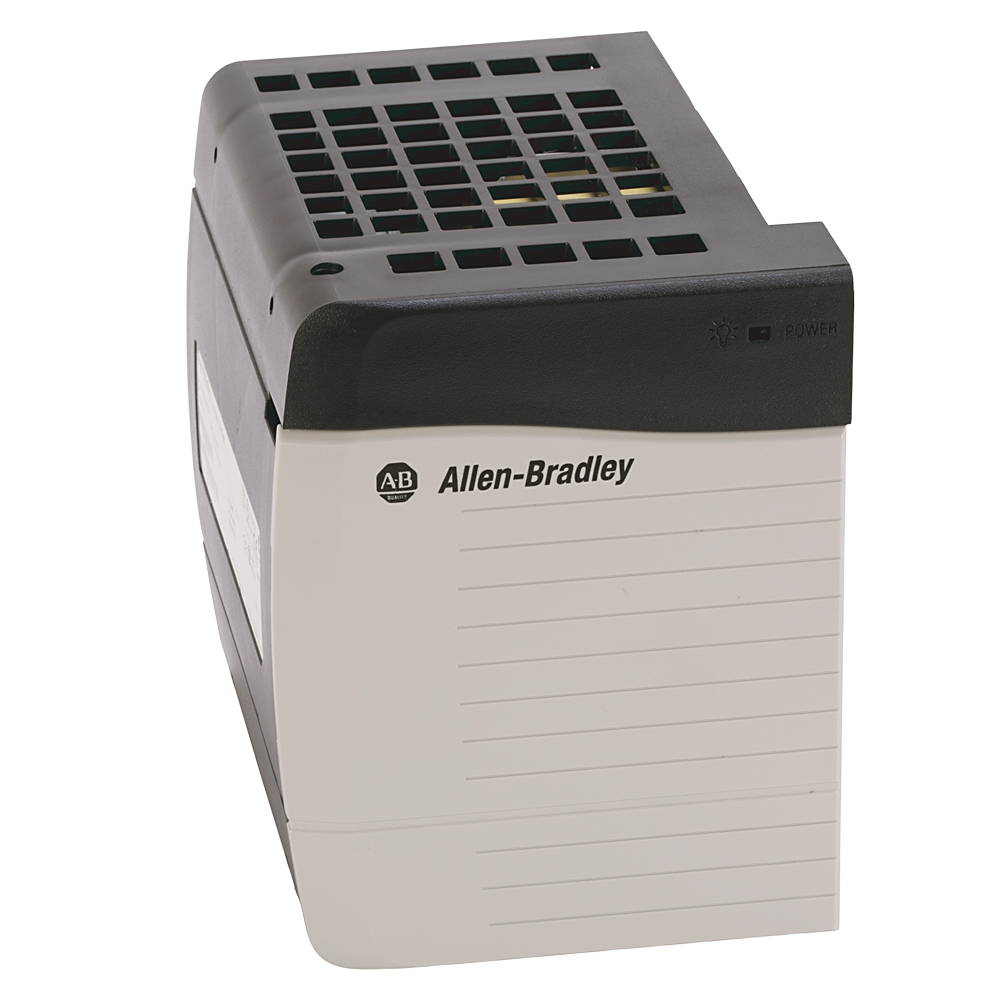

1756-PA75 | power-supply module; input voltage range: 85…265 V AC; input frequency range: 47…63 Hz; output current at 1.2 V DC: 1.5 A

Typical applications

• Use 1756-PA75 in the documented equipment configuration when the design calls for input voltage range: 85…265 V AC.
• Choose 1756-PA75 for the documented equipment configuration that must provide input frequency range: 47…63 Hz.
• Before ordering 1756-PA75, verify output current at 1.2 V DC: 1.5 A against the the documented equipment configuration design.

Key specifications

Product type

power-supply module

Input voltage range

85…265 V AC

Input frequency range

47…63 Hz

Output current at 1.2 V DC

1.5 A

Output current at 3.3 V DC

4 A

Output current at 5.1 V DC

13 A
