Beckhoff Automation GmbH & Co. KG

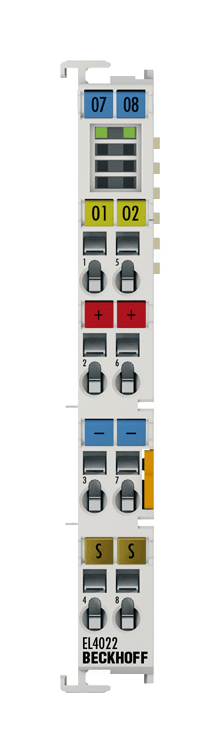

EL4022 | analog output module; number of outputs: 2; signal current: 4…20 mA; resolution: 12 bit
Manufacturer part number: EL4022ESYS SKU: EL4022
Net unit price, VAT 0%
€156.84
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 40 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 09:25
Beckhoff Automation GmbH & Co. KG EL4022 is an analog output module. Key selection facts are number of outputs: 2; signal current: 4…20 mA; resolution: 12 bit.
pcs
Information for product selection
Typical applications
- Use EL4022 in analog actuator and reference-signal channels when the design calls for number of outputs: 2.
- Choose EL4022 for analog actuator and reference-signal channels that must provide signal current: 4…20 mA.
- Before ordering EL4022, verify resolution: 12 bit against the analog actuator and reference-signal channels design.
Key specifications
- Product type
- analog output module
- Number of outputs
- 2
- Power supply
- 24 V DC via power contacts
- Signal current
- 4…20 mA
- Distributed clocks
- yes
- Distributed clock accuracy
- << 1 µs
Show additional verified specifications
- Load
- < 500 Ω (short-circuit proof)
- Resolution
- 12 bit
- Output error
- < 0.1% (relative to end value)
- Electrical isolation
- 500 V (E-bus/signal voltage)
- Network protocol
- EtherCAT
- I/O direction
- Output
Lifecycle
- Status
- Active
Compatibility and related parts
EtherCAT Terminal, 2-channel analog output, current, 4…20 mA, 12 bit
Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
