Siemens

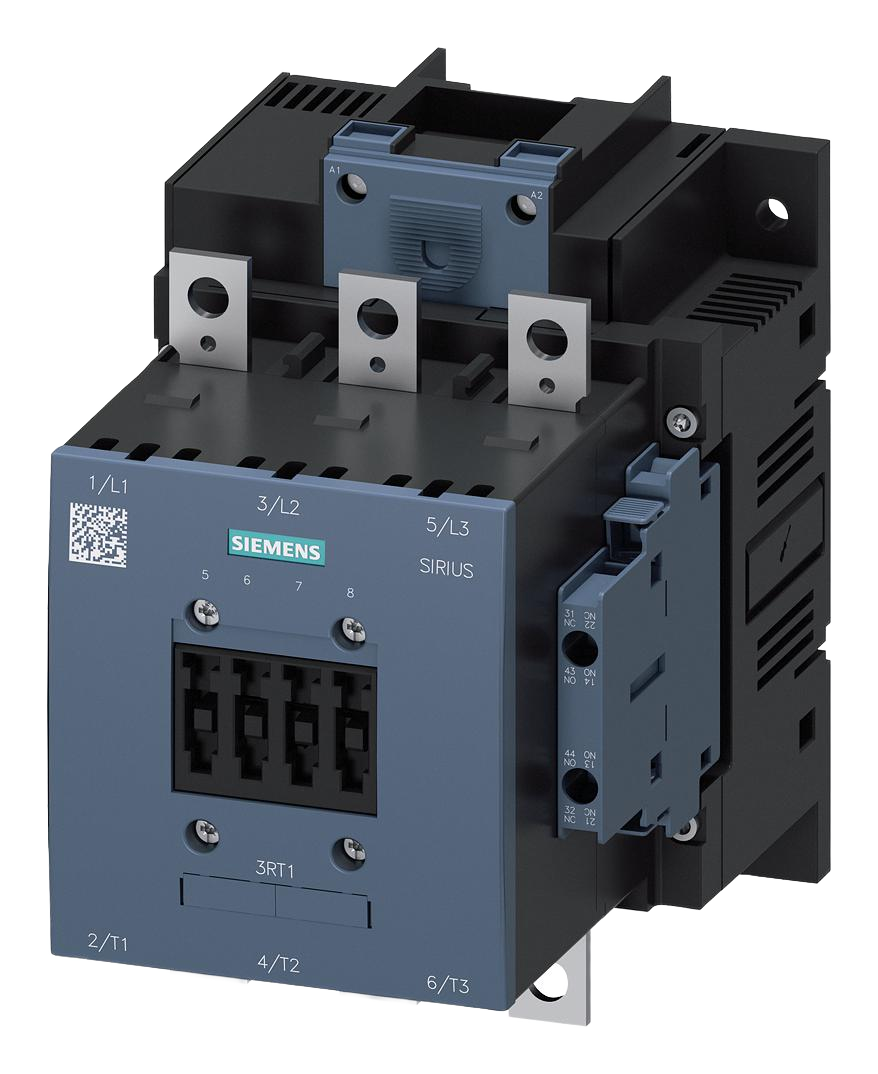

Siemens 3RT1055-6AP36 SIRIUS S6 power contactor
Manufacturer part number: 3RT1055-6AP36ESYS SKU: 3RT1055-6AP36
Net unit price, VAT 0%
€295.96
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
3RT1055-6AP36 is a three-pole SIRIUS S6 power contactor for 150 A AC-3e/AC-3 loads. It is rated 75 kW at 400 V with a 220-240 V AC 50-60 Hz or DC control supply.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Switching a high-power motor load
- Contactor for a 75 kW, 400 V motor feeder
- Replacement of a 3RT1055-6AP36 contactor
Key specifications
- Product series
- SIRIUS 3RT1
- Contactor size
- S6
- Main pole count
- 3
- AC-3e/AC-3 rated current
- 150 A
- Motor power at 400 V
- 75 kW
- Control voltage
- 220-240 V AC/DC
Show additional verified specifications
- Auxiliary contacts
- 2 NO + 2 NC
- Main-circuit connection
- Busbar
- Control-circuit connection
- Screw
- Mechanical life
- 10000000 operations
- Weight
- 3.205 kg
Lifecycle
- Status
- Active
Compatibility and related parts
three-phase motor feeder within 150 A AC-3 and 75 kW at 400 V
System: Switches a three-phase motor feeder only when load, protection, control voltage, and coordination meet the documented 150 A AC-3 and 75 kW limits.
