Siemens

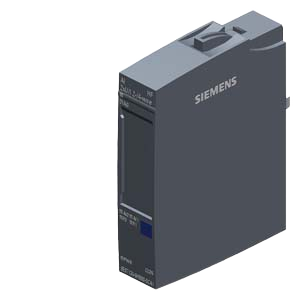

Siemens SIMATIC ET 200SP 6ES7134-6HB00-0CA1 analog input module
Manufacturer part number: 6ES7134-6HB00-0CA1ESYS SKU: 6ES7134-6HB00-0CA1
Net unit price, VAT 0%
€227.02
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 119 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIMATIC ET 200SP 6ES7134-6HB00-0CA1 analog input module. Key selection data: Number of analog inputs: 2, Differential inputs; Supported input signal ranges: 0 ... +10 V, 0 ... 20 mA, 1 V ... 5 V, -10 V ... +10 V, -20 mA ... +20 mA, 4 mA ... 20 mA, -5 V ... +5 V; Module-variant accuracy: ±0.1 %.
pcs
Information for product selection
Typical applications
- Connecting analog field signals to an automation system
- Integrating process measurements into distributed I/O
- Replacement in an existing Siemens assembly when article number 6ES7134-6HB00-0CA1 matches
Key specifications
- Number of analog inputs
- 2; Differential inputs
- Module-variant accuracy
- ±0.1 %
- Supported input signal ranges
- 0 ... +10 V, 0 ... 20 mA, 1 V ... 5 V, -10 V ... +10 V, -20 mA ... +20 mA, 4 mA ... 20 mA, -5 V ... +5 V
- Diagnostic scope
- channel diagnostics
- Maximum resolution
- 16 bit
- Conversion time per channel
- 68.03 / 22.83 / 19.03 / 10.28 / 5.23 / 2.68 / 1.43 / 0.730 ms
Show additional verified specifications
- Supply voltage
- 24 V DC
- Compatible BaseUnit
- bu type a0, a1
- Minimum cycle time
- 1 ms
- Input resistance for 0 ... 20 mA
- 130 Ω
- Width
- 15 mm
- Height
- 73 mm
Lifecycle
- Status
- Active
Compatibility and related parts
bu type a0, a1
System: Compatible BaseUnit
