Beckhoff Automation GmbH & Co. KG

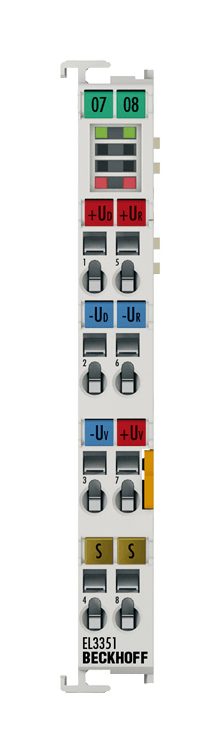

EL3351 | analog input module; input filter cut-off frequency: 50 Hz default setting, parameterizable; conversion time: 2.5…800 ms, configurable, max. 400 samples/s
Manufacturer part number: EL3351ESYS SKU: EL3351
Net unit price, VAT 0%
€201.84
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Beckhoff Automation GmbH & Co. KG EL3351 is an analog input module. Key selection facts are input filter cut-off frequency: 50 Hz default setting, parameterizable; conversion time: 2.5…800 ms, configurable, max. 400 samples/s; network protocol: EtherCAT.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use EL3351 in sensor measurement channels when the design calls for input filter cut-off frequency: 50 Hz default setting, parameterizable.
- Choose EL3351 for sensor measurement channels that must provide conversion time: 2.5…800 ms, configurable, max. 400 samples/s.
- Before ordering EL3351, verify network protocol: EtherCAT against the sensor measurement channels design.
Key specifications
- Product type
- analog input module
- Physical input count
- 2
- Bridge channel count
- 1
- Bridge technology
- Full bridge
- Power supply
- via the E-bus
- Measuring range UD
- max. -20…+20 mV
Show additional verified specifications
- Measuring range UREF
- max. -12…+12 V
- Internal resistance
- > 200 kΩ (UREF), > 1 MΩ (UD)
- Supported nominal sensitivity
- calculated in PLC, freely selectable
- Input filter cut-off frequency
- 50 Hz default setting, parameterizable
- Conversion time
- 2.5…800 ms, configurable, max. 400 samples/s
- Network protocol
- EtherCAT
Lifecycle
- Status
- Active
Compatibility and related parts
EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit
Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
