Allen-Bradley (Rockwell Automation)

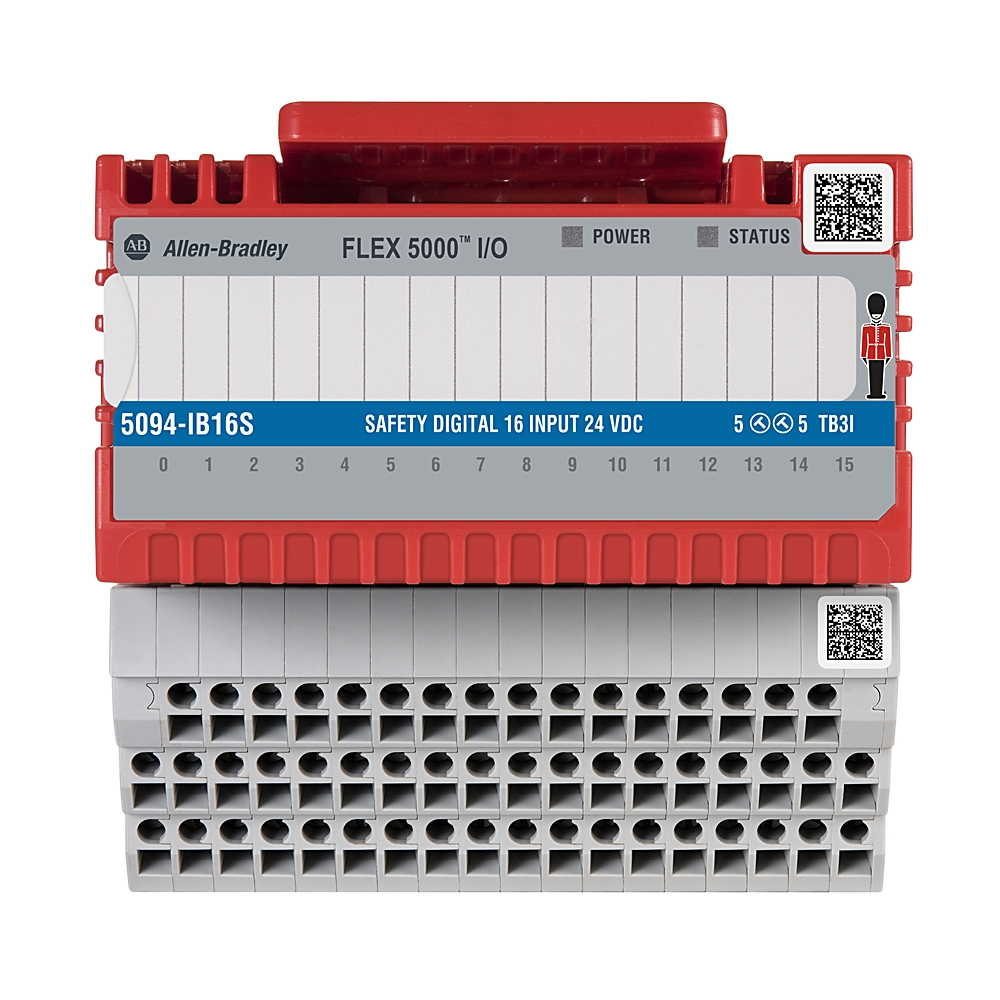

5094-IB16S | safety input module; safety function: Safety-rated I/O or control; number of inputs: 16; input topology: Sinking
Manufacturer part number: 5094-IB16SESYS SKU: 5094IB16S
Net unit price, VAT 0%
€833.71
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
Allen-Bradley (Rockwell Automation) 5094-IB16S is a safety input module. Key selection facts are safety function: Safety-rated I/O or control; number of inputs: 16; input topology: Sinking.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use 5094-IB16S in machine input circuits when the design calls for safety function: Safety-rated I/O or control.
- Choose 5094-IB16S for machine input circuits that must provide number of inputs: 16.
- Before ordering 5094-IB16S, verify input topology: Sinking against the machine input circuits design.
Key specifications
- Product type
- safety input module
- Safety function
- Safety-rated I/O or control
- Input topology
- Sinking
- Operating temperature
- -40…70 °C
- Input rating
- 2.5 mA @ 10…32 V DC
- Sensor/actuator power
- 3.0 A @ 18…32 V DC
Show additional verified specifications
- Test output rating
- 350 mA @ 18…32 V DC
- Isolation voltage
- 250 V continuous; SA power and channels to backplane
- Safety integrity level
- SIL 3, PLe, Category 4
- Number of inputs
- 16
- I/O direction
- Input
- Signal technology
- Digital
Lifecycle
- Status
- Active
Compatibility and related parts
Allen-Bradley FLEX 5000 system
System: Documented manufacturer system or product-family context; does not imply interchangeability with every member
Official manufacturer documents
- Allen-Bradley (Rockwell Automation) 5094-IB16S official product evidence (Technical document, en)Opens in a new window
- Official product cutsheet (Datasheet, en)Opens in a new window
- View Guidance (Datasheet, en)Opens in a new window
- FLEX 5000 Digital 16-point Sinking Safety Input Modules Installation Instructions (Manual, en)Opens in a new window
