Siemens

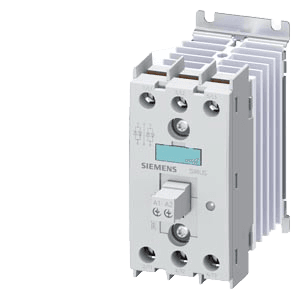

Siemens SIRIUS 3RF2410-1AB45 solid-state contactor
Manufacturer part number: 3RF2410-1AB45ESYS SKU: 3RF2410-1AB45
Net unit price, VAT 0%
€120.43
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 1 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIRIUS 3RF2410-1AB45 solid-state contactor. Key selection data: Operational current AC-51 at 40 °C: 10 A; Load-voltage range: 48 ... 600 V AC; Control voltage: 4 ... 30 V DC; Switched phases: 3 phases; Controlled phases: 2 controlled phases; Terminal type: screw-type terminals.
pcs
Information for product selection
Typical applications
- Fast, wear-free solid-state switching of resistive loads
- Electronic control of heating and process loads
- Replacement in an existing Siemens assembly when article number 3RF2410-1AB45 matches
Key specifications
- Operational current AC-51 at 40 °C
- 10 A
- Load-voltage range
- 48 ... 600 V AC
- Control voltage
- 4 ... 30 V DC
- Switched phases
- 3 phases
- Controlled phases
- 2 controlled phases
- Terminal type
- screw-type terminals
Show additional verified specifications
- Frequency
- 50 ... 60 Hz
- Mounting method
- screw fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715
- Protection rating
- IP20
- Width
- 45 mm
- Front touch protection
- finger-safe, for vertical contact from the front
- Connectable conductor cross-section
- 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²
Lifecycle
- Status
- Phase-out
- Verified successor part number
- 3RF3410-1AB45
Compatibility and related parts
3RF2410-1AB45
Replacement: Replacement is allowed only when the target article number is exactly 3RF2410-1AB45; this does not establish interchangeability with any other Siemens article.
