Eaton

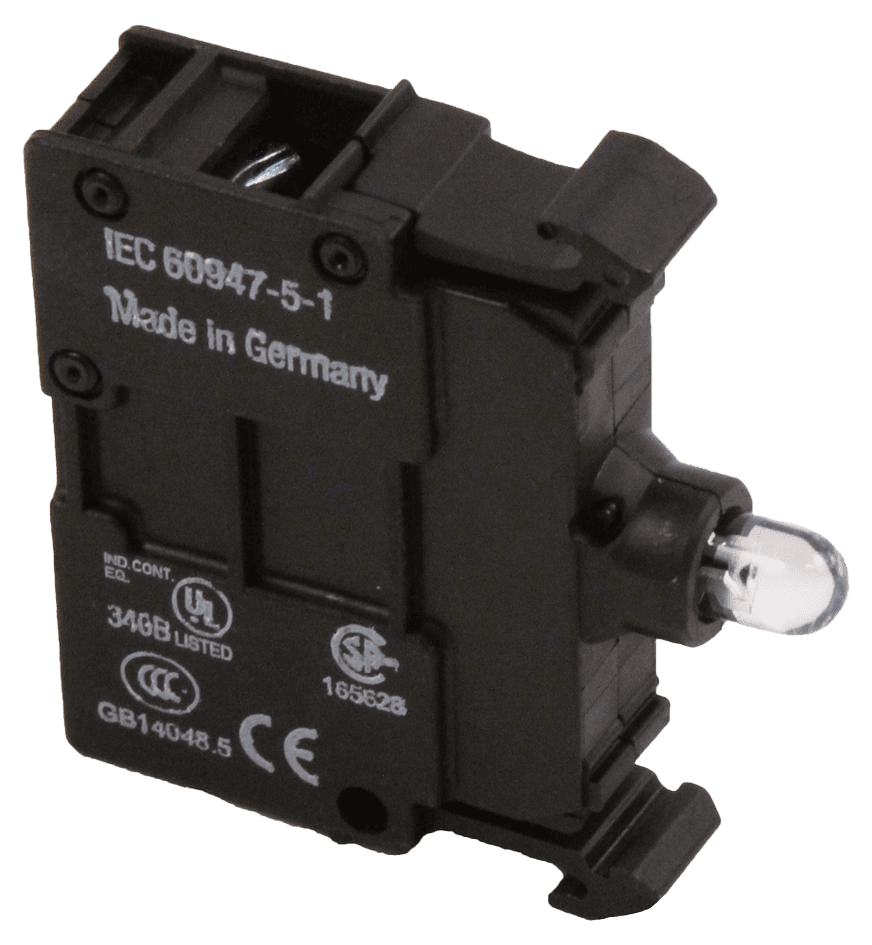

Eaton M22-LED-W white 12-30 V AC/DC light element
Manufacturer part number: M22-LED-WESYS SKU: S2335512
Net unit price, VAT 0%
€8.54
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
M22-LED-W is a screw-connected light element with a white LED for M22 operators. It operates at 12-30 V AC/DC, and the component itself is IP20; the completed M22 assembly's front protection depends on the operator and installation.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- White backlighting for an M22 pushbutton
- Replacement of an indicator-light element
- 24 V status indication on a machine panel
Key specifications
- Component type
- Light element
- Light source
- LED
- Light color
- White
- Operating voltage
- 12-30 V AC/DC
- Connection method
- Screw connection
- Product series
- M22
Show additional verified specifications
- System mounting size
- 22.5 mm
- Component degree of protection
- IP20
- Dimensions H x W x D
- 10 x 37 x 38 mm
- Weight
- 0.011 kg
Lifecycle
- Status
- Active
Compatibility and related parts
Eaton M22 modular pushbutton system
Product series: Installs as the white light element in a compatible M22 illuminated operator assembly.
