Allen-Bradley (Rockwell Automation)

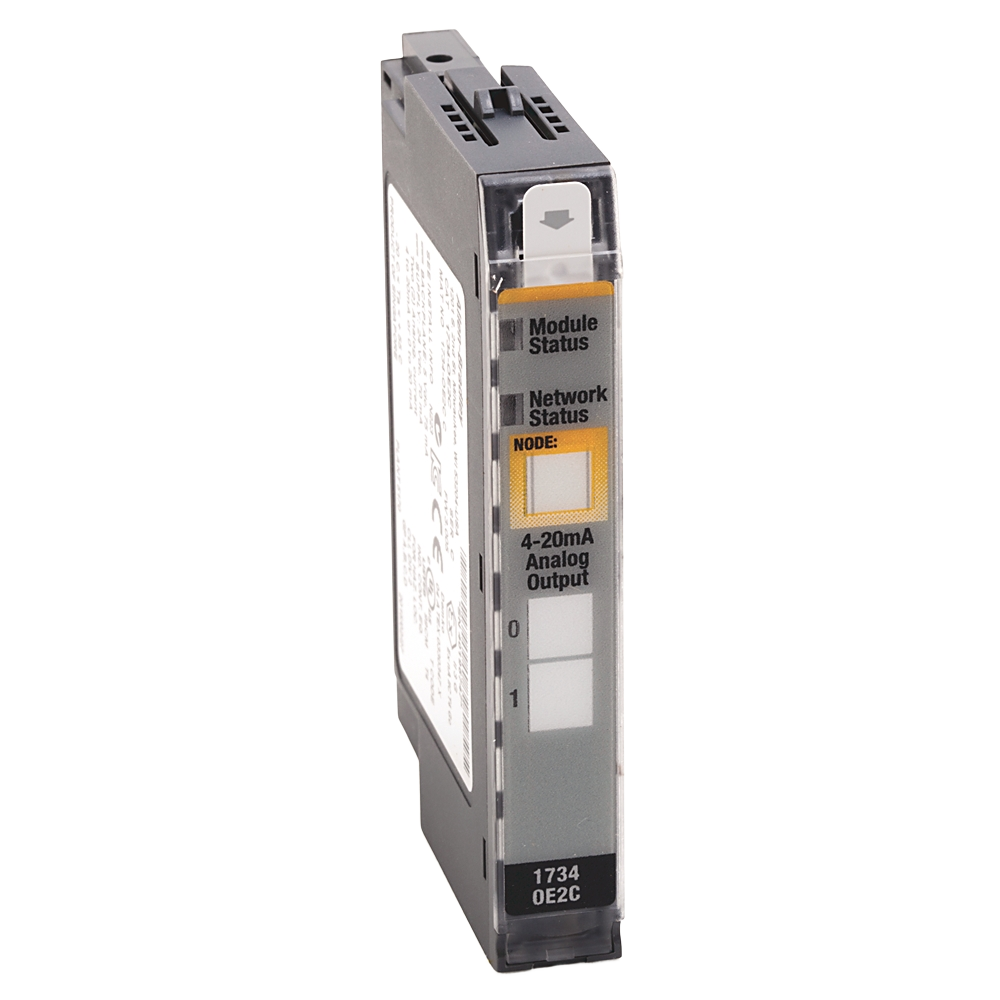

1734-OE2C | analog output module; number of outputs: 2; output configuration: Single-ended, non-isolated current; output current ranges: 4…20 mA; 0…20 mA
Manufacturer part number: 1734-OE2CESYS SKU: 1734OE2C
Net unit price, VAT 0%
€295.51
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 09:30
Allen-Bradley (Rockwell Automation) 1734-OE2C is an analog output module. Key selection facts are number of outputs: 2; output configuration: Single-ended, non-isolated current; output current ranges: 4…20 mA; 0…20 mA.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use 1734-OE2C in analog actuator and reference-signal channels when the design calls for number of outputs: 2.
- Choose 1734-OE2C for analog actuator and reference-signal channels that must provide output configuration: Single-ended, non-isolated current.
- Before ordering 1734-OE2C, verify output current ranges: 4…20 mA; 0…20 mA against the analog actuator and reference-signal channels design.
Key specifications
- Product type
- analog output module
- Number of outputs
- 2
- Output configuration
- Single-ended, non-isolated current
- Output current ranges
- 4…20 mA; 0…20 mA
- Output resolution
- 13 bit over 0…21 mA; 2.5 µA/count average
- Absolute accuracy
- 0.1% full scale @ 25 °C
Show additional verified specifications
- Step response to 63% of full scale
- 24 µs
- Resistive load range
- 0…750 Ω
- Digital-to-analog conversion rate
- 16 µs
- POINTBus current
- 75 mA @ 5 V DC
- Isolation voltage
- 50 V continuous; no channel-to-channel isolation
- Field-supply voltage range
- 10…28.8 V DC
Lifecycle
- Status
- Active
Compatibility and related parts
Allen-Bradley POINT I/O 1734 system
System: Documented manufacturer system or product-family context; does not imply interchangeability with every member
Official manufacturer documents
- Allen-Bradley (Rockwell Automation) 1734-OE2C official product evidence (Technical document, en)Opens in a new window
- Official product cutsheet (Datasheet, en)Opens in a new window
- View Guidance (Datasheet, en)Opens in a new window
- POINT I/O Modules Selection Guide (1734-SG001J-EN-P) (Manual, en)Opens in a new window
