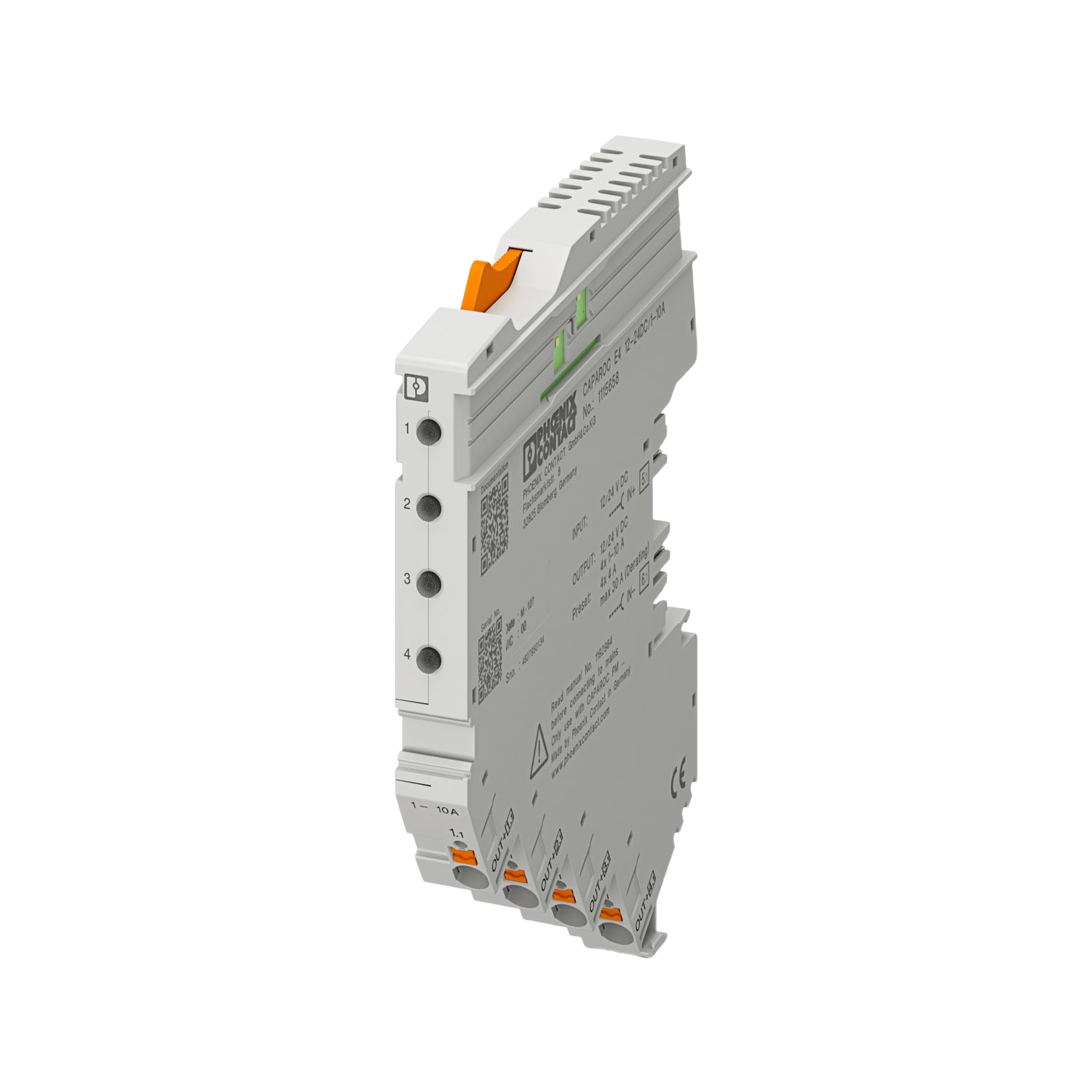

Phoenix Contact 1115658 CAPAROC E4 four-channel electronic circuit breaker
Manufacturer part number: 1115658ESYS SKU: 1115658
Net unit price, VAT 0%
€97.31
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 171 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
CAPAROC E4 protects four 12 or 24 V DC loads against overload and short circuit. Each channel is adjustable from 1 A to 10 A using its illuminated button.
pcs
Information for product selection
Typical applications
- Selective protection of four 24 V DC loads
- Branch-level overload protection in a control cabinet
- Adjustable load protection in a CAPAROC system
Key specifications
- Channel count
- 4
- Rated voltage
- 12 / 24 V DC
- Operating voltage range
- 10-30 V DC
- Adjustable rated current
- 1-10 A/channel
- Short-circuit breaking capacity
- 300 A
- Efficiency
- >99 %
Show additional verified specifications
- Degree of protection
- IP20
- Operating temperature
- -30...+65 °C
- Width
- 12.4 mm
Lifecycle
- Status
- Active
Compatibility and related parts
CAPAROC
System: Plugs into CAPAROC current rails and operates with a CAPAROC power module.
