OMRON

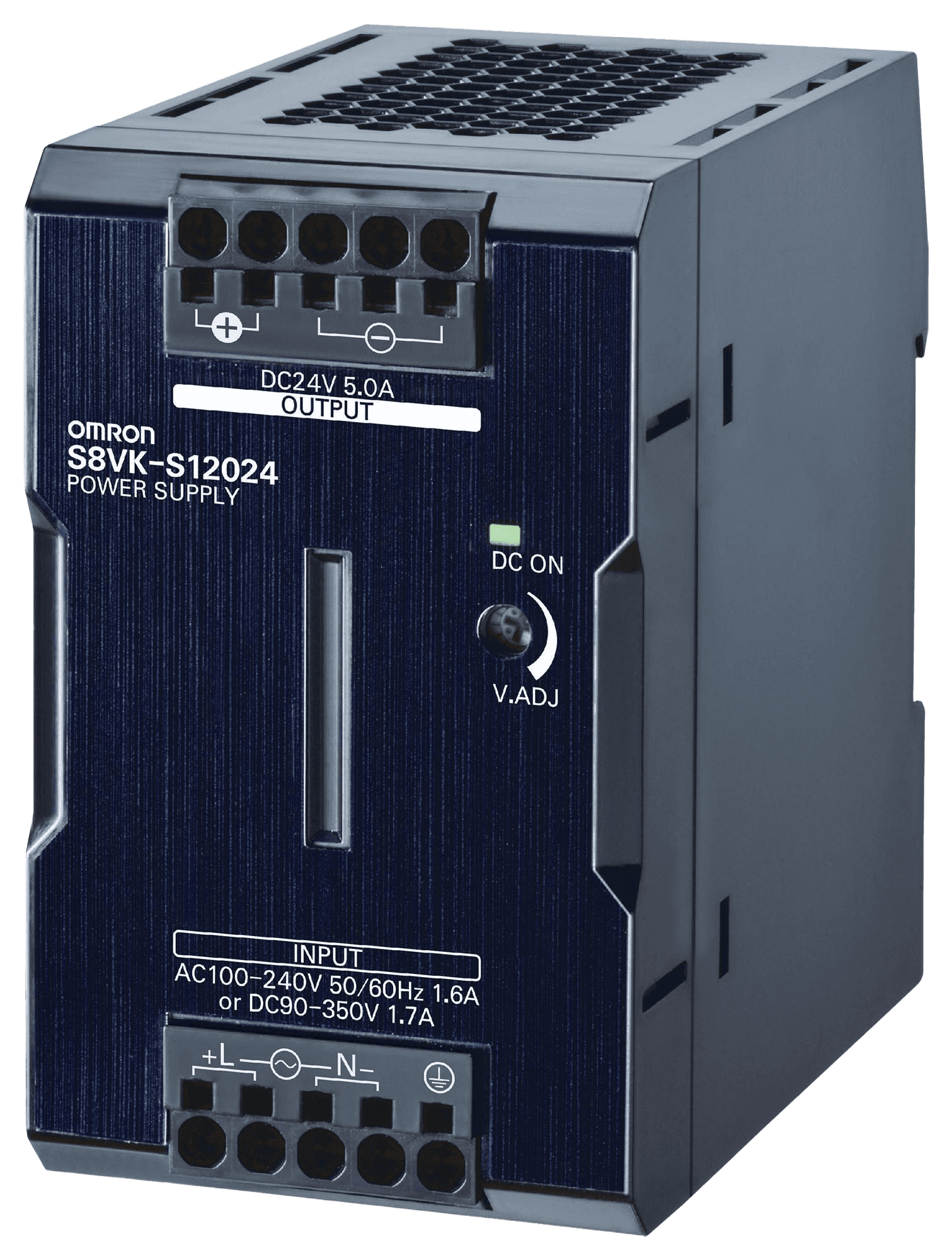

OMRON S8VK-S12024 120 W 24 V DC power supply
Manufacturer part number: S8VK-S12024ESYS SKU: 669511
Net unit price, VAT 0%
€82.90
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
S8VK-S12024 is a fanless 120 W DIN-rail power supply with universal input. Its rated output is 24 V DC / 5 A, boost current is 6 A, and allowable input is 85...264 V AC or 90...350 V DC.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Generating 24 V DC control power from a universal single-phase input.
- A fanless 120 W DIN-rail supply for a compact control panel.
- A load that can use the manufacturer's published 6 A boost current.
Key specifications
- Power rating
- 120 W
- Rated output voltage
- 24 V DC
- Rated output current
- 5 A
- Maximum boost current
- 6 A
- AC input
- 85...264 V AC
- DC input
- 90...350 V DC
Show additional verified specifications
- Efficiency
- 90% at 115 V AC; 92% at 230 V AC
- Output voltage adjustment
- 21.6...28 V
- Hold time
- 45 ms typical
- Degree of protection
- IP20
- Dimensions
- 55 x 90 x 86 mm
Lifecycle
- Status
- Active
Compatibility and related parts
DIN rail with PFP-M end plates
System: The unit mounts on DIN rail and may be secured with PFP-M end plates. The S8VK-S12024 input limits of 85...264 V AC / 90...350 V DC do not make it electrically interchangeable with 400 V multiphase S8VK-T models.
