OMRON

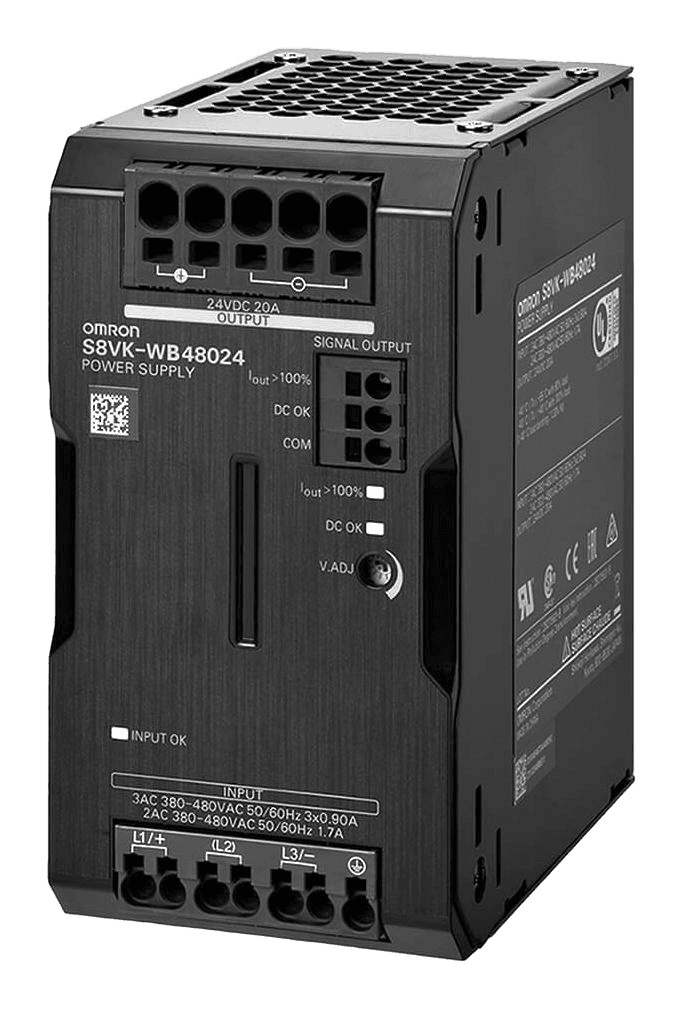

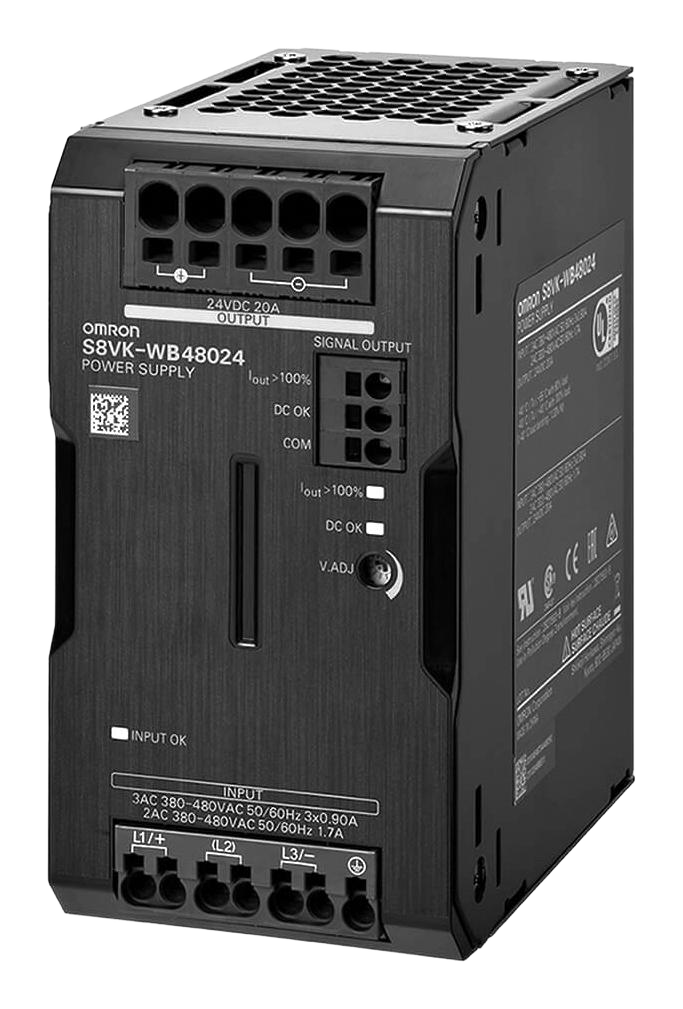

OMRON S8VK-WB48024 480 W 24 V DC power supply
Manufacturer part number: S8VK-WB48024ESYS SKU: 699601
Net unit price, VAT 0%
€204.25
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 1 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
S8VK-WB48024 is a 480 W power supply with Push-In Plus terminals and 380...480 V AC two- or three-phase input. Its output is 24 V DC / 20 A with 30 A boost current.
pcs
Information for product selection
Typical applications
- Generating 24 V DC control power from a 380...480 V AC multiphase supply.
- A 480 W load requiring the published 30 A boost current.
- Push-In Plus wiring in a DIN-rail installation.
Key specifications
- Power rating
- 480 W
- Rated output voltage
- 24 V DC
- Rated output current
- 20 A
- Maximum boost current
- 30 A
- Rated AC input
- 380...480 V AC, two- or three-phase
- Allowable AC input
- 320...576 V AC
Show additional verified specifications
- Allowable DC input
- 450...810 V DC
- Termination technology
- Push-In Plus
- Number of outputs
- 1
- Input phase count
- 2 or 3
Lifecycle
- Status
- Active
Compatibility and related parts
S82Y-VKW40F front-mounting bracket
Accessory: S82Y-VKW40F is the published front bracket for the 480 W S8VK-WB model; PFP-M end plates may be used on DIN rail. This does not imply electrical interchangeability with other S8VK voltage classes.
