Beckhoff Automation GmbH & Co. KG

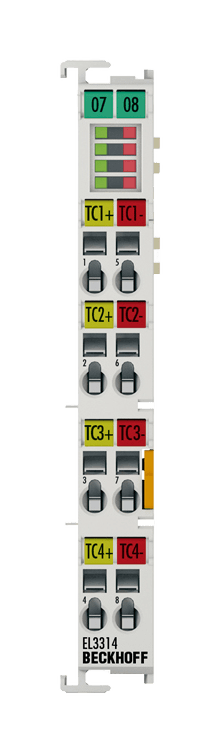

EL3314 | analog input module; number of inputs: 4; input filter cut-off frequency: typ. 1 kHz; resolution: 16 bit, representation adjustable: 0.1/0.01 °C or 1/2/4 µV per digit
Manufacturer part number: EL3314ESYS SKU: EL3314
Net unit price, VAT 0%
€252.24
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 7 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Beckhoff Automation GmbH & Co. KG EL3314 is an analog input module. Key selection facts are number of inputs: 4; input filter cut-off frequency: typ. 1 kHz; resolution: 16 bit, representation adjustable: 0.1/0.01 °C or 1/2/4 µV per digit.
pcs
Information for product selection
Typical applications
- Use EL3314 in sensor measurement channels when the design calls for number of inputs: 4.
- Choose EL3314 for sensor measurement channels that must provide input filter cut-off frequency: typ. 1 kHz.
- Before ordering EL3314, verify resolution: 16 bit, representation adjustable: 0.1/0.01 °C or 1/2/4 µV per digit against the sensor measurement channels design.
Key specifications
- Product type
- analog input module
- Conversion time
- 10 ms…2.5 s; 250 ms default
- Number of inputs
- 4
- Power supply
- via the E-bus
- Input filter cut-off frequency
- typ. 1 kHz
- Connection technology
- 2-wire
Show additional verified specifications
- Voltage measurement
- ±30/±60/±75 mV
- Resolution
- 16 bit, representation adjustable: 0.1/0.01 °C or 1/2/4 µV per digit
- Network protocol
- EtherCAT
- Temperature measurement (thermocouple)
- type B, C, E, J, K, L, N, R, S, T, U (default setting: type K)
- I/O direction
- Input
- Signal technology
- Analog
Lifecycle
- Status
- Active
Compatibility and related parts
EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit
Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
