Allen-Bradley (Rockwell Automation)

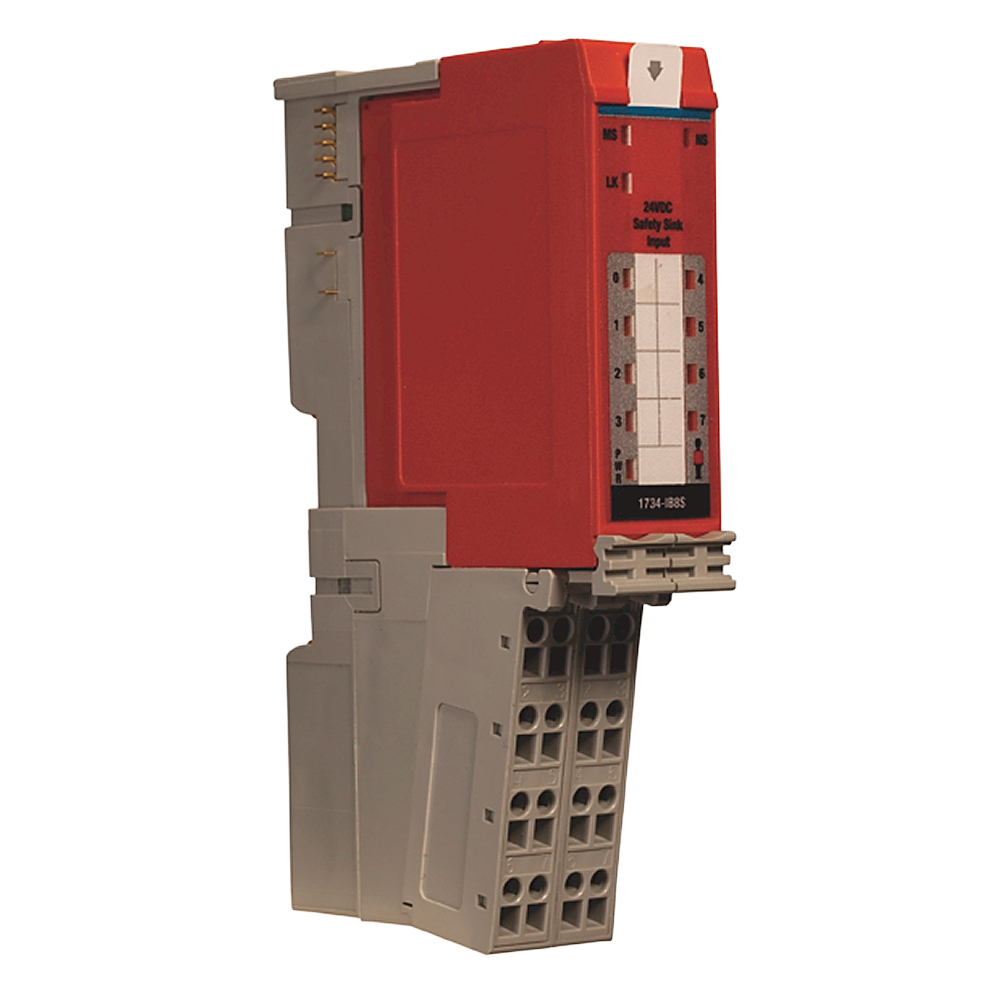

1734-IB8S | safety input module; safety function: Safety-rated I/O or control; number of inputs: 8; input topology: Current sinking
Manufacturer part number: 1734-IB8SESYS SKU: 1734IB8S
Net unit price, VAT 0%
€467.69
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
Allen-Bradley (Rockwell Automation) 1734-IB8S is a safety input module. Key selection facts are safety function: Safety-rated I/O or control; number of inputs: 8; input topology: Current sinking.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use 1734-IB8S in machine input circuits when the design calls for safety function: Safety-rated I/O or control.
- Choose 1734-IB8S for machine input circuits that must provide number of inputs: 8.
- Before ordering 1734-IB8S, verify input topology: Current sinking against the machine input circuits design.
Key specifications
- Product type
- safety input module
- Safety function
- Safety-rated I/O or control
- Number of inputs
- 8
- Input topology
- Current sinking
- On-state input rating
- 11…30 V DC, 3.5 mA @ 40 °C; 11…28.8 V DC, 3.5 mA @ 55 °C
- Off-state input voltage, maximum
- 5 V DC
Show additional verified specifications
- On-state input current, minimum
- 3.3 mA
- Reaction time
- < 16.2 ms
- Pulse-test sources
- 4
- POINTBus current, maximum
- 125 mA
- Isolation voltage
- 50 V continuous, field side to system; no channel-to-channel isolation
- Power-bus voltage range
- 19.2…28.8 V DC
Lifecycle
- Status
- Active
Compatibility and related parts
Allen-Bradley POINT I/O 1734 system
System: Documented manufacturer system or product-family context; does not imply interchangeability with every member
Official manufacturer documents
- Allen-Bradley (Rockwell Automation) 1734-IB8S official product evidence (Technical document, en)Opens in a new window
- Official product cutsheet (Datasheet, en)Opens in a new window
- View Guidance (Datasheet, en)Opens in a new window
- POINT I/O Modules Selection Guide (1734-SG001J-EN-P) (Manual, en)Opens in a new window
