Beckhoff Automation GmbH & Co. KG

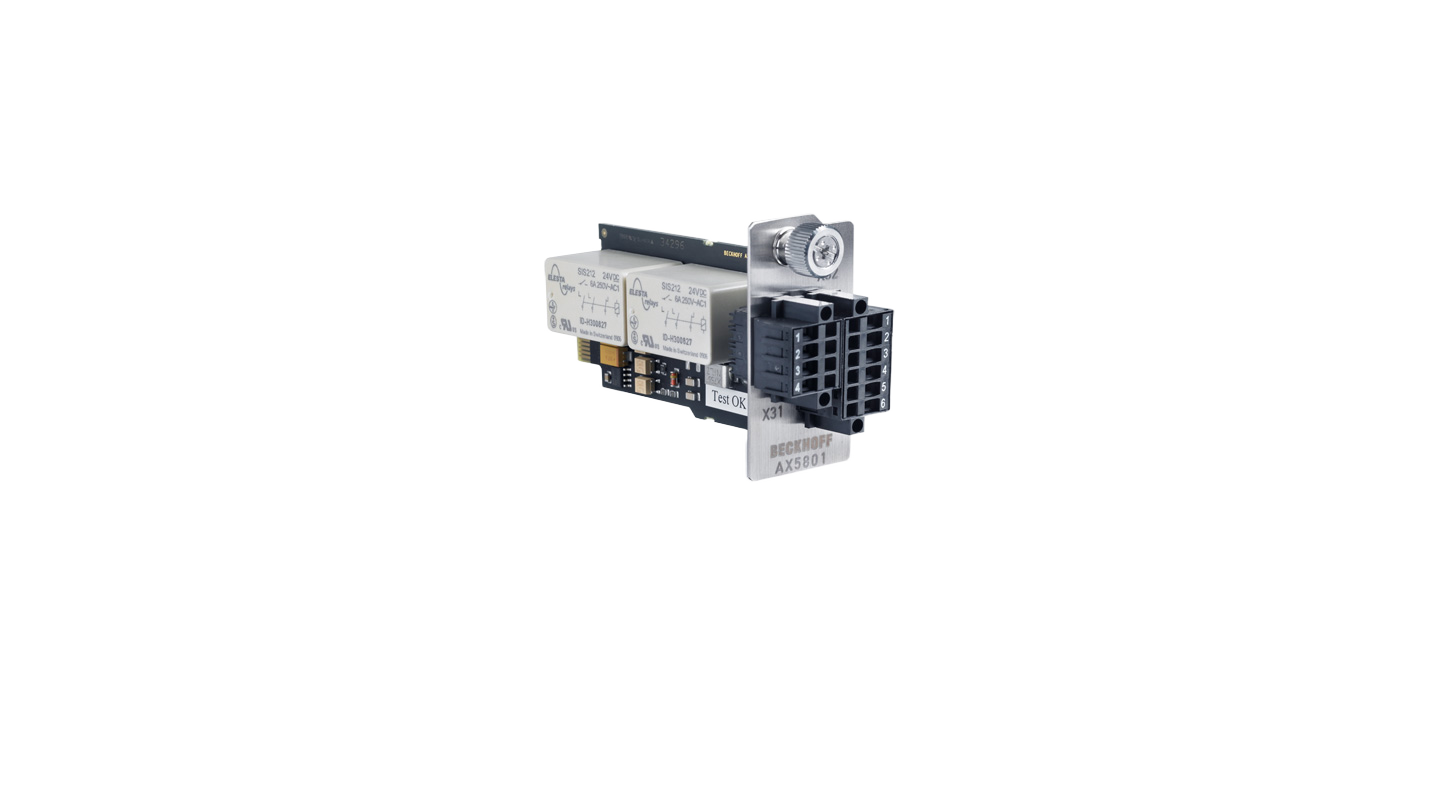

AX5801-0200 | TwinSAFE drive option card; safe stop functions: STO and SS1; compatible drive current range: 1.5…40 A; performance level: EN ISO 13849-1 Cat. 4, PL e
Manufacturer part number: AX5801-0200ESYS SKU: AX5801-0200-0000
Net unit price, VAT 0%
€119.65
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:40
Beckhoff Automation GmbH & Co. KG AX5801-0200 is a TwinSAFE drive option card. Key selection facts are safe stop functions: STO and SS1; compatible drive current range: 1.5…40 A; performance level: EN ISO 13849-1 Cat. 4, PL e.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use AX5801-0200 in motion-control axes when the design calls for safe stop functions: STO and SS1.
- Choose AX5801-0200 for motion-control axes that must provide compatible drive current range: 1.5…40 A.
- Before ordering AX5801-0200, verify performance level: EN ISO 13849-1 Cat. 4, PL e against the motion-control axes design.
Key specifications
- Product type
- TwinSAFE drive option card
- Safe stop functions
- STO and SS1
- Compatible drive current range
- 1.5…40 A
- Performance level
- EN ISO 13849-1 Cat. 4, PL e
- Safety integrity level
- IEC 61508 SIL 3
- STO realization
- Hard-wired via safe inputs
Show additional verified specifications
- Approvals and markings
- CE, cULus
- Operating temperature
- 0…50 C
- Hardware generation
- AX5801-0200 (HW2)
- System family
- AX5000 TwinSAFE drive option card
Lifecycle
- Status
- Active
Compatibility and related parts
AX5xxx-xxxx-x2xx (1.5...40 A)
Product series: Compatible AX5000 hardware generation; older-generation drives are not compatible
