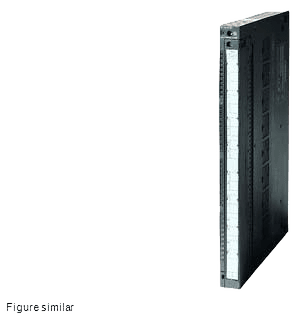

Siemens SIMATIC S7-400 6ES7431-1KF20-0AB0 analog input module
Manufacturer part number: 6ES7431-1KF20-0AB0ESYS SKU: 6ES7431-1KF20-0AB0
Net unit price, VAT 0%
€1,425.84
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 1 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIMATIC S7-400 6ES7431-1KF20-0AB0 analog input module. Key selection data: Number of analog inputs: 8; Supported input signal ranges: -1 V ... +1 V, 1 V ... 5 V, -10 V ... +10 V, -20 mA ... +20 mA, 4 mA ... 20 mA; Resistance-range relative accuracy: ±0.7 %, 0 ... 600 Ω; Maximum resolution: 14 bit.
pcs
Information for product selection
Typical applications
- Connecting analog field signals to an automation system
- Integrating process measurements into distributed I/O
- Replacement in an existing Siemens assembly when article number 6ES7431-1KF20-0AB0 matches
Key specifications
- Number of analog inputs
- 8
- Supported resistance ranges
- 0 ... 600 Ω
- Resistance-range relative accuracy
- ±0.7 %; 0 ... 600 Ω
- Supported wiring modes
- 2-wire, 3-wire, 4-wire
- Supported input signal ranges
- -1 V ... +1 V, 1 V ... 5 V, -10 V ... +10 V, -20 mA ... +20 mA, 4 mA ... 20 mA
- Maximum resolution
- 14 bit
Show additional verified specifications
- Conversion time per channel
- 52 µs
- Supply voltage
- 24 V DC; Only required for supplying 2-wire transmitters
- Input resistance for -1 V ... +1 V
- 10 MΩ
- Width
- 25 mm
- Height
- 290 mm
- Depth
- 210 mm
Lifecycle
- Status
- Phase-out
Compatibility and related parts
6ES7431-1KF20-0AB0
Replacement: Replacement is allowed only when the target article number is exactly 6ES7431-1KF20-0AB0; this does not establish interchangeability with any other Siemens article.
