Beckhoff Automation GmbH & Co. KG

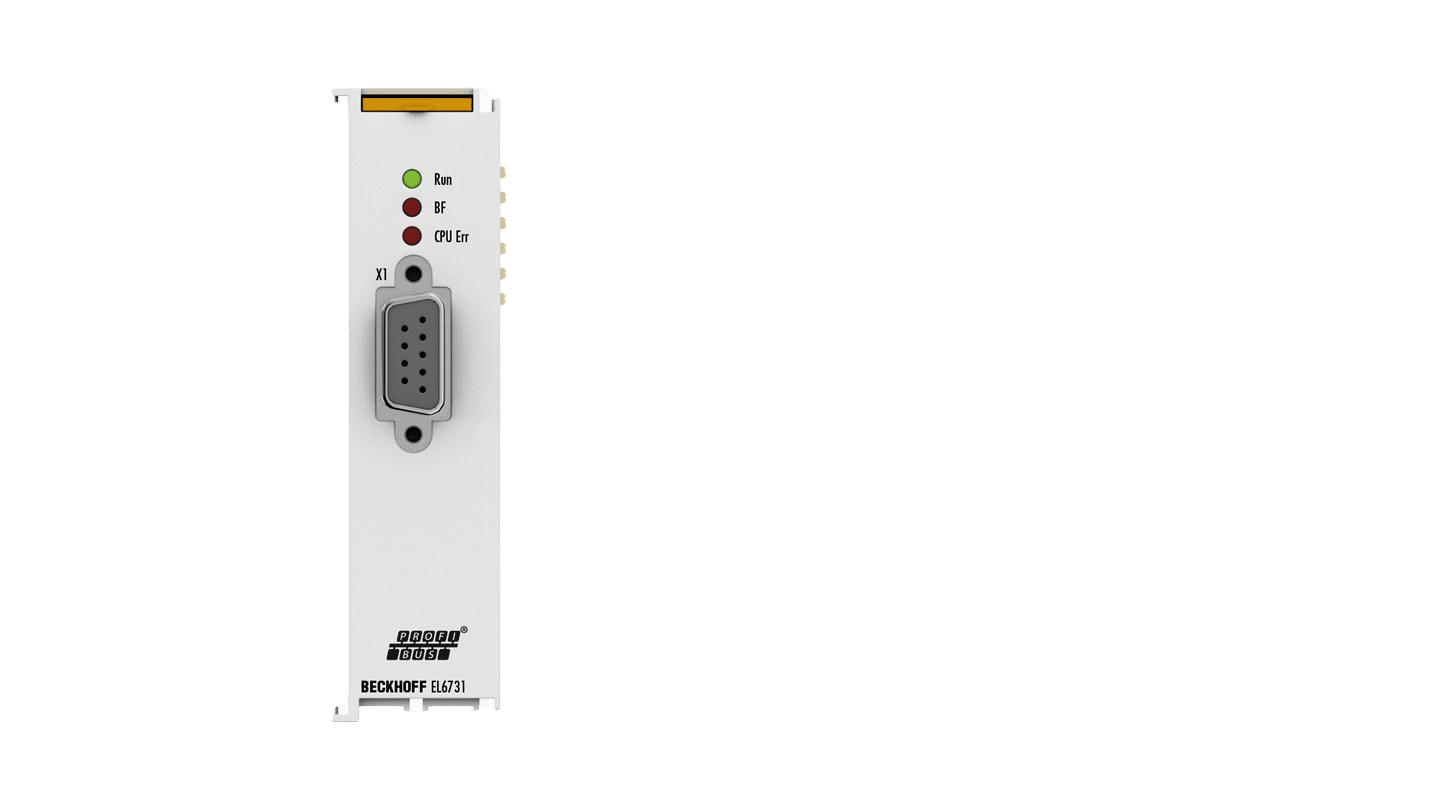

EL6731 | fieldbus communication terminal; number of channels: 1; network protocol: PROFIBUS; pROFIBUS role: Master and slave
Manufacturer part number: EL6731ESYS SKU: EL6731
Net unit price, VAT 0%
€428.15
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 3 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Beckhoff Automation GmbH & Co. KG EL6731 is a fieldbus communication terminal. Key selection facts are number of channels: 1; network protocol: PROFIBUS; pROFIBUS role: Master and slave.
pcs
Information for product selection
Typical applications
- Use EL6731 in industrial data networks when the design calls for number of channels: 1.
- Choose EL6731 for industrial data networks that must provide network protocol: PROFIBUS.
- Before ordering EL6731, verify pROFIBUS role: Master and slave against the industrial data networks design.
Key specifications
- Product type
- fieldbus communication terminal
- PROFIBUS role
- Master and slave
- Cycle synchronization
- Different DP cycle times per slave via CDL
- Number of channels
- 1
- Number of devices
- max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave
- Fieldbus
- PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant)
Show additional verified specifications
- Transmission rate
- 9.6 kbaud…12 Mbaud
- Interfaces
- 1 x D-sub socket, 9-pin, galvanically decoupled
- Hardware diagnostics
- status LEDs
- Distributed clocks
- yes
- Network protocol
- PROFIBUS
- System family
- EtherCAT Terminal, 1-channel communication interface, PROFIBUS, master/slave
Lifecycle
- Status
- Active
Compatibility and related parts
PROFIBUS system
System: Documented manufacturer system or product-family context; does not imply interchangeability with every member
