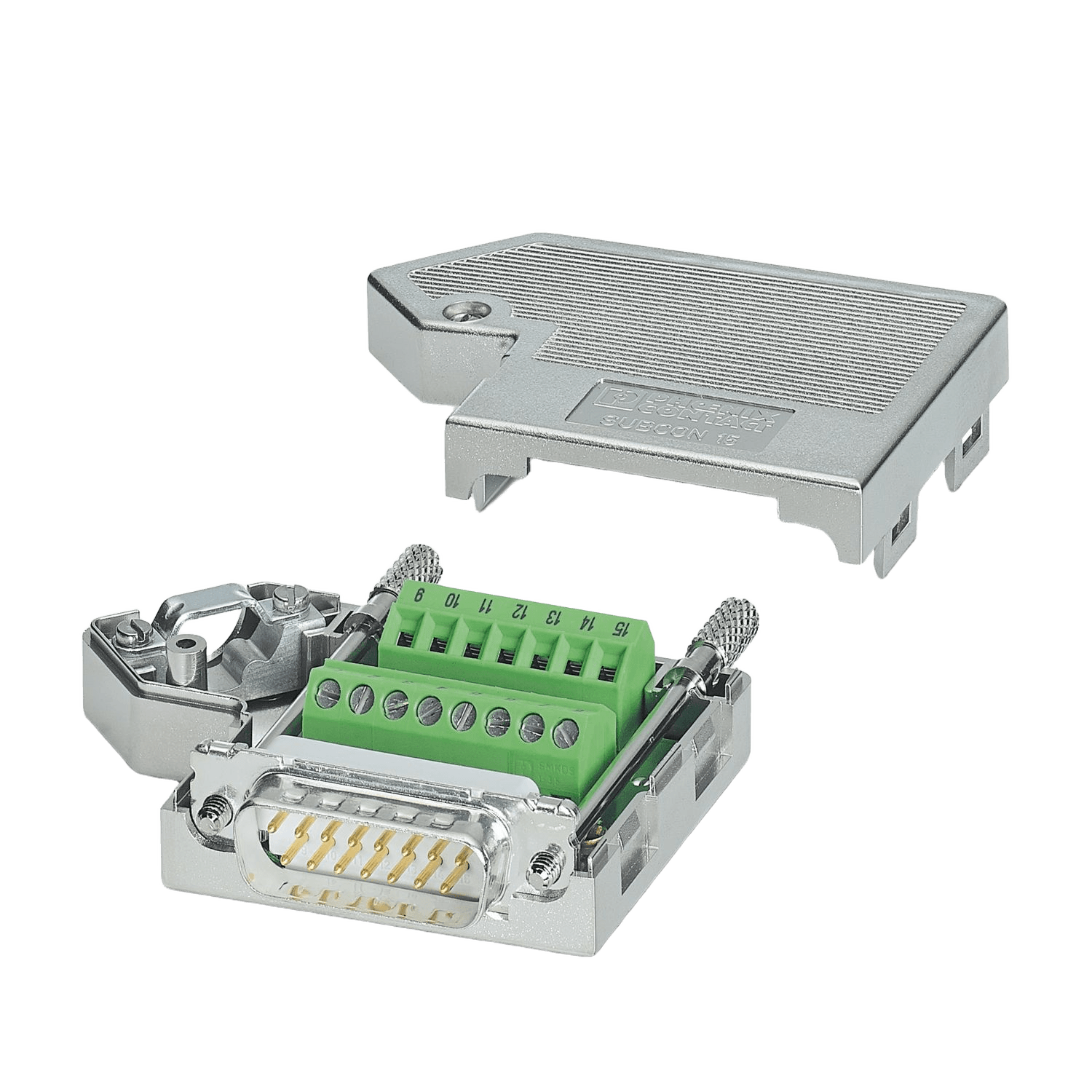

Phoenix Contact SUBCON 15/M-SH 15-position D-SUB screw-terminal plug
Manufacturer part number: SUBCON 15/M-SHESYS SKU: 2761606
Net unit price, VAT 0%
€65.65
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
SUBCON 15/M-SH is a 15-position male D-SUB connector that routes every pin 1:1 to screw terminals. Its cable outlet is angled 35 degrees and accepts 4...10 mm cable.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Passive 15-position point-to-point D-SUB cabling.
- Field termination with every pin routed to a screw terminal.
- Tight installation using the optional SUBCON-SHORT-SCREW accessory.
Key specifications
- Connector interface
- D-SUB, male
- Number of positions
- 15
- Cable outlet angle
- 35 °
- Pin routing
- all 1:1 to screw terminals
- Nominal voltage
- 30 V AC/DC
- Nominal current
- 100 mA
Show additional verified specifications
- Rigid conductor
- 0.14...1.5 mm²
- Flexible conductor
- 0.14...1 mm²
- Terminal torque
- 0.22...0.25 N m
- Cable outside diameter
- 4...10 mm
- Dimensions
- 16 x 55 x 65 mm
- Degree of protection
- IP20
Lifecycle
- Status
- Active
Compatibility and related parts
SUBCON-SHORT-SCREW
Accessory: Phoenix Contact offers SUBCON-SHORT-SCREW for tight mounting conditions. The connector provides passive 1:1 wiring only and performs no protocol conversion.
