Carlo Gavazzi

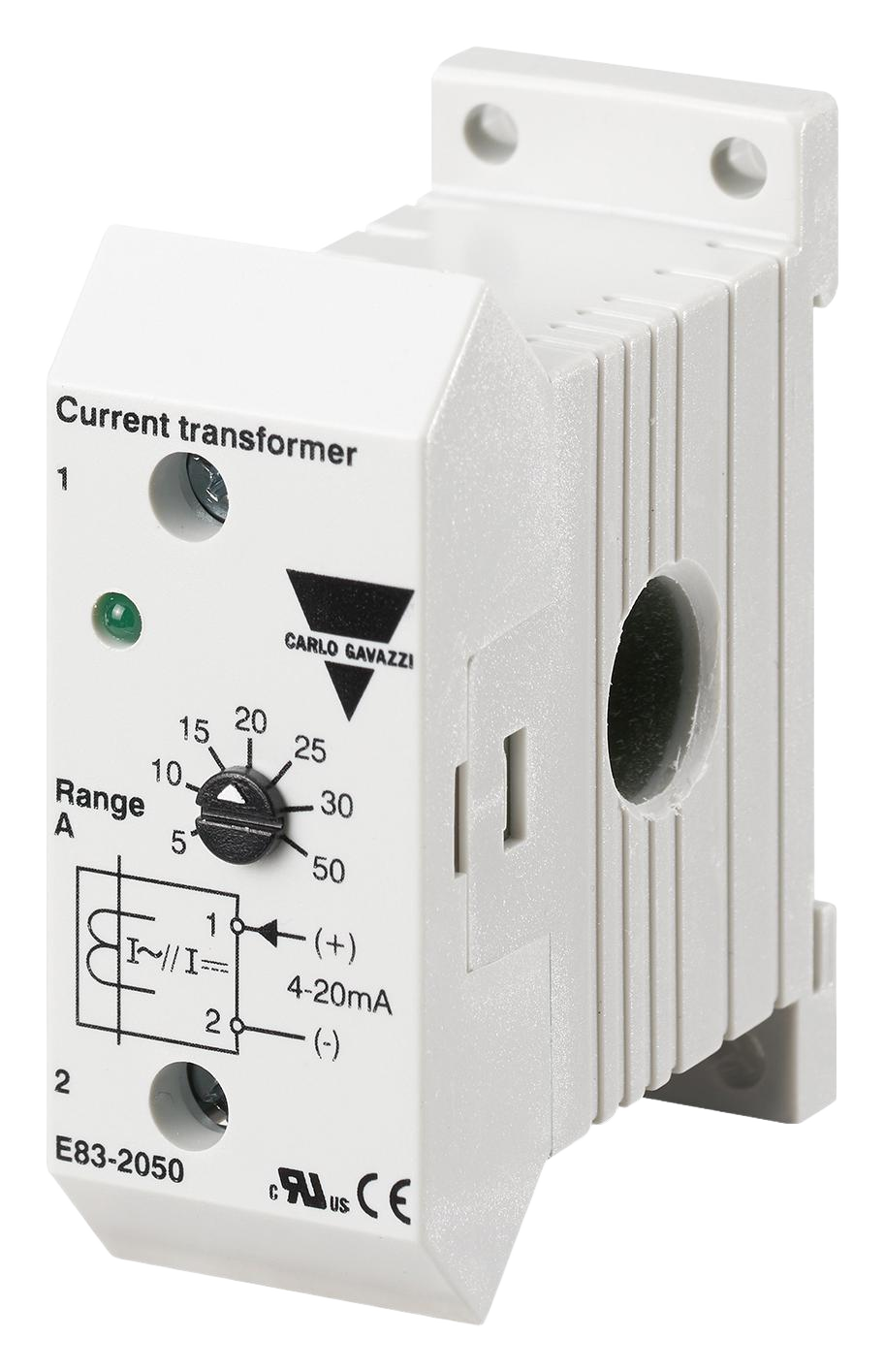

Carlo Gavazzi E83-2050 AC current transducer, 4...20 mA
Manufacturer part number: E83-2050ESYS SKU: E83-2050
Net unit price, VAT 0%
€121.54
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 3 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 09:25
E83-2050 measures AC current over seven selectable ranges up to 50 A and converts it to a 4...20 mA DC signal. The loop-powered unit mounts on DIN rail or a wall.
pcs
Information for product selection
Typical applications
- Transmitting motor current to a PLC 4...20 mA analogue input.
- AC-current monitoring in building automation or machine control.
- Converting the 5 A secondary of a larger current transformer to 4...20 mA.
Key specifications
- Selectable measuring ranges
- 0...5 / 10 / 15 / 20 / 25 / 30 / 50 A AC
- Maximum continuous current
- 100 A
- Overload current
- 300 A / 30 s
- Frequency range
- 40...1000 Hz
- Analogue signal
- 4...20 mA DC
- Loop voltage
- 10...40 V DC
Show additional verified specifications
- Output tolerance
- ±2% full scale at 50 Hz
- Aperture diameter
- 12 mm
- Dimensions
- 22.5 x 55.4 x 47.4 mm
- Mounting
- DIN rail or wall
- Number of ranges
- 7
Lifecycle
- Status
- Active
Compatibility and related parts
PLC 4...20 mA analogue input
System: The loop-powered 4...20 mA output connects to a matching controller analogue input using a 10...40 V DC loop. The manufacturer also names DIB01, PIB01, DIC01 and PIC01 relays; this does not imply compatibility with other signal types.
