Siemens

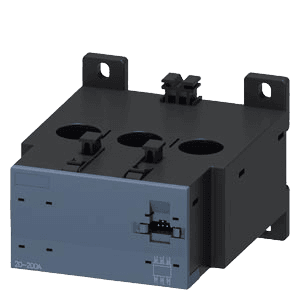

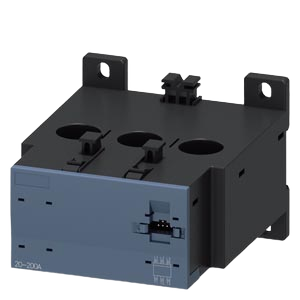

Siemens SIRIUS 3RB2956-2TG2 current measuring module
Manufacturer part number: 3RB2956-2TG2ESYS SKU: 3RB2956-2TG2
Net unit price, VAT 0%
€298.15
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 2 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIRIUS 3RB2956-2TG2 current measuring module. Key selection data: Current-measurement range: 20 ... 200 A; Operational current AC-3e at 400 V: 200 A; Front protection rating: IP20; Compatible relay series: 3RB22/23/24; Main-current path: straight-through transformer; Adjustable current range: 20 ... 200 A.
pcs
Information for product selection
Typical applications
- Measuring and monitoring electrical quantities
- Sending measured values to a control system
- Replacement in an existing Siemens assembly when article number 3RB2956-2TG2 matches
Key specifications
- Current-measurement range
- 20 ... 200 A
- Operational current AC-3e at 400 V
- 200 A
- Compatible relay series
- 3RB22/23/24
- Main-current path
- straight-through transformer
- Front protection rating
- IP20
- Adjustable current range
- 20 ... 200 A
Show additional verified specifications
- Front touch protection
- finger-safe, for vertical contact from the front
- Weight
- 0.655 kg
Lifecycle
- Status
- Phase-out
Compatibility and related parts
3RB22/23/24
Product series: Compatible relay series
