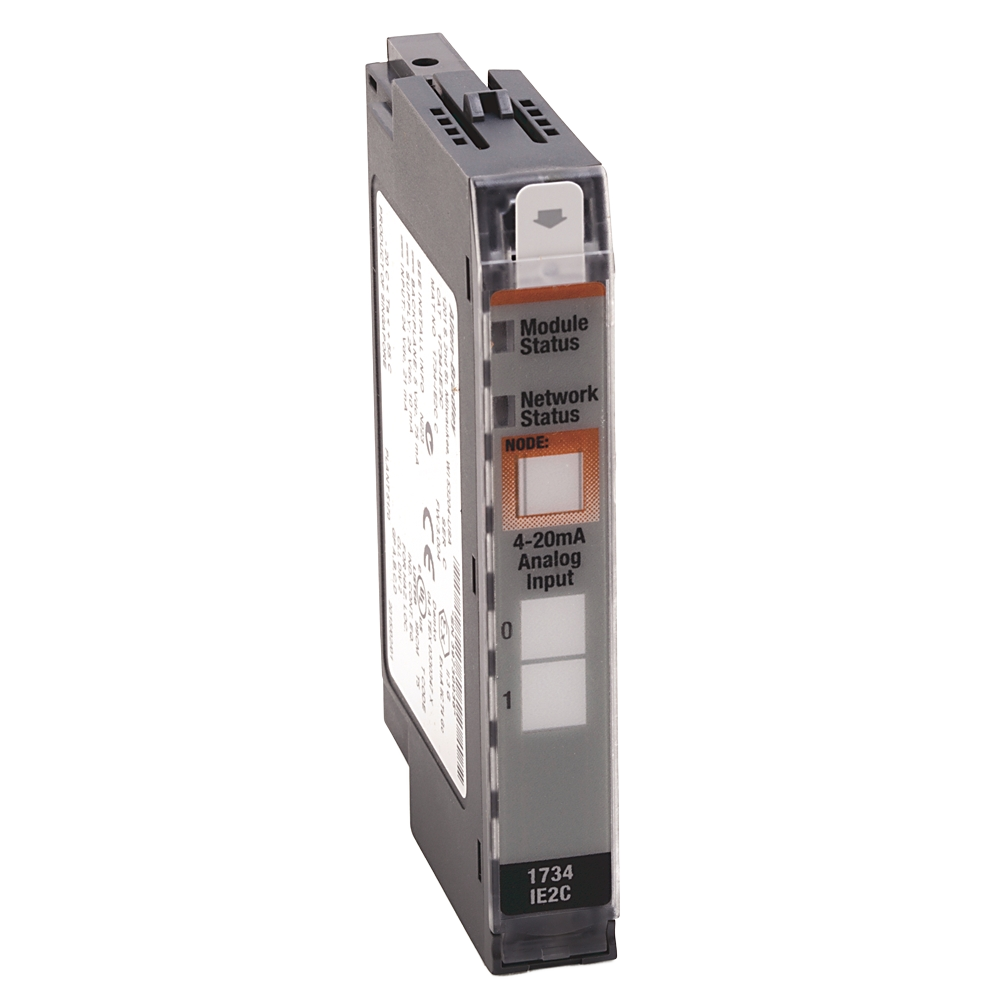

1734-IE2C | analog input module; number of inputs: 2; input configuration: Single-ended, non-isolated current; input current ranges: 4…20 mA; 0…20 mA; input impedance: 60 Ω

Typical applications

• Use 1734-IE2C in sensor measurement channels when the design calls for number of inputs: 2.
• Choose 1734-IE2C for sensor measurement channels that must provide input configuration: Single-ended, non-isolated current.
• Before ordering 1734-IE2C, verify input current ranges: 4…20 mA; 0…20 mA against the sensor measurement channels design.

Key specifications

Product type

analog input module

Number of inputs

2

Input configuration

Single-ended, non-isolated current

Input current ranges

4…20 mA; 0…20 mA

Input resolution

16 bit over 0…21 mA; 0.32 µA/count

Absolute accuracy

0.1% full scale @ 25 °C
