Eaton Z-ECUL 171145 end cap for Z-BB/UL busbar
Manufacturer part number: Z-ECULESYS SKU: EAT171145
Net unit price, VAT 0%
€0.87
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 23 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45

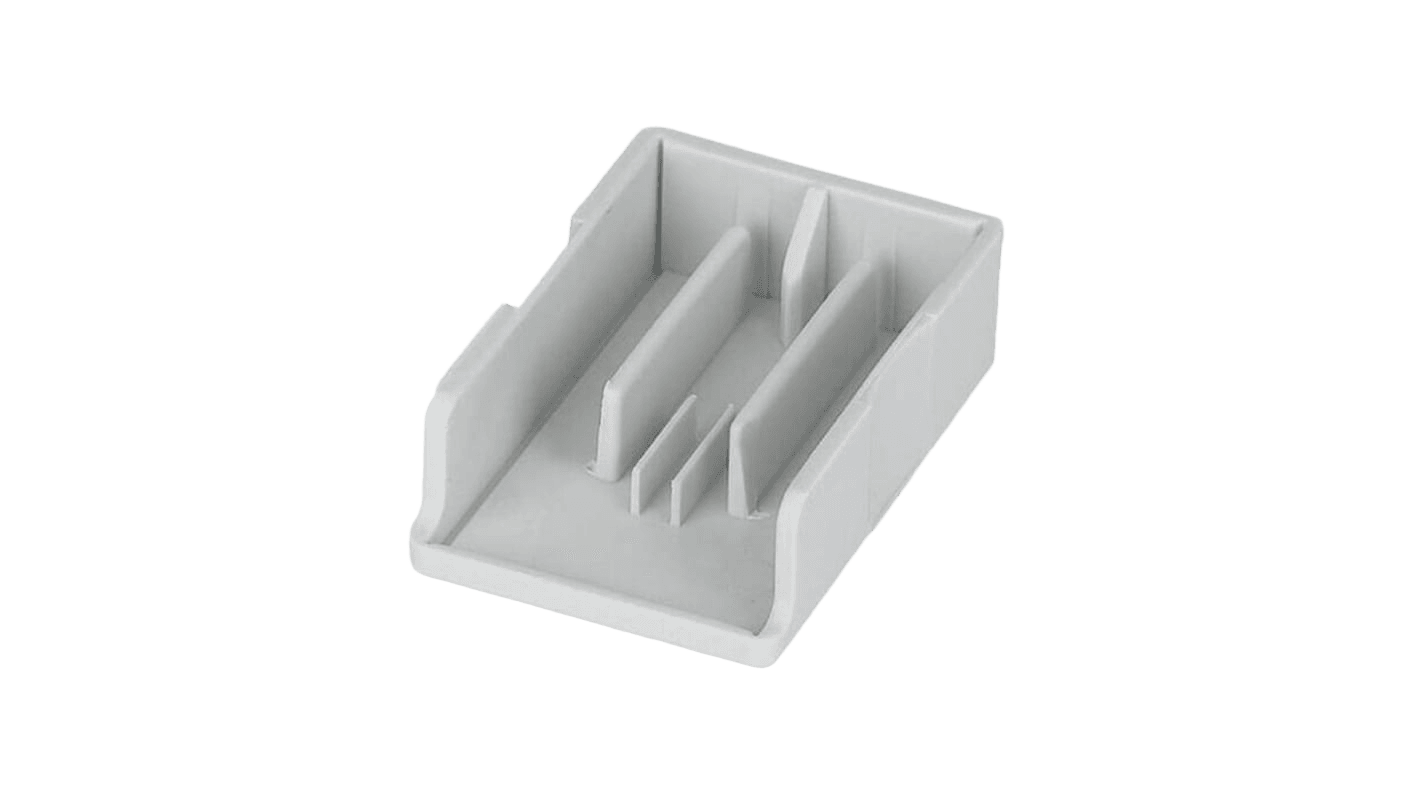

Z-ECUL is a plastic end cap for the end of an Eaton Z-BB/UL busbar shroud. Article 171145 is supplied in packs of ten and measures 22 x 10 x 32.9 mm.
pcs
Information for product selection
Typical applications
- Closing the end of a cut Z-BB/UL busbar shroud
- Completing touch protection on an FAZ-NA or FAZ-RT busbar assembly
- Replacing a missing or damaged Z-ECUL end cap
Key specifications
- Component type
- End cap
- Product series
- Z-BB/UL
- Compatible breaker series
- FAZ-NA / FAZ-RT
- Material
- Plastic
- Length
- 22 mm
- Width
- 10 mm
Show additional verified specifications
- Depth
- 32.9 mm
- Compatible busbar cross-section
- 18 / 25 mm²
- Compatible busbar maximum current
- 100 A
- Busbar-system protection rating
- IP20
Lifecycle
- Status
- Active
Compatibility and related parts
Z-BB/UL
Product series: End cap for the Z-BB/UL busbar shroud system.
FAZ-NA / FAZ-RT
Product series: Z-BB/UL busbar system is specified for these Eaton breaker families.
