Allen-Bradley (Rockwell Automation)

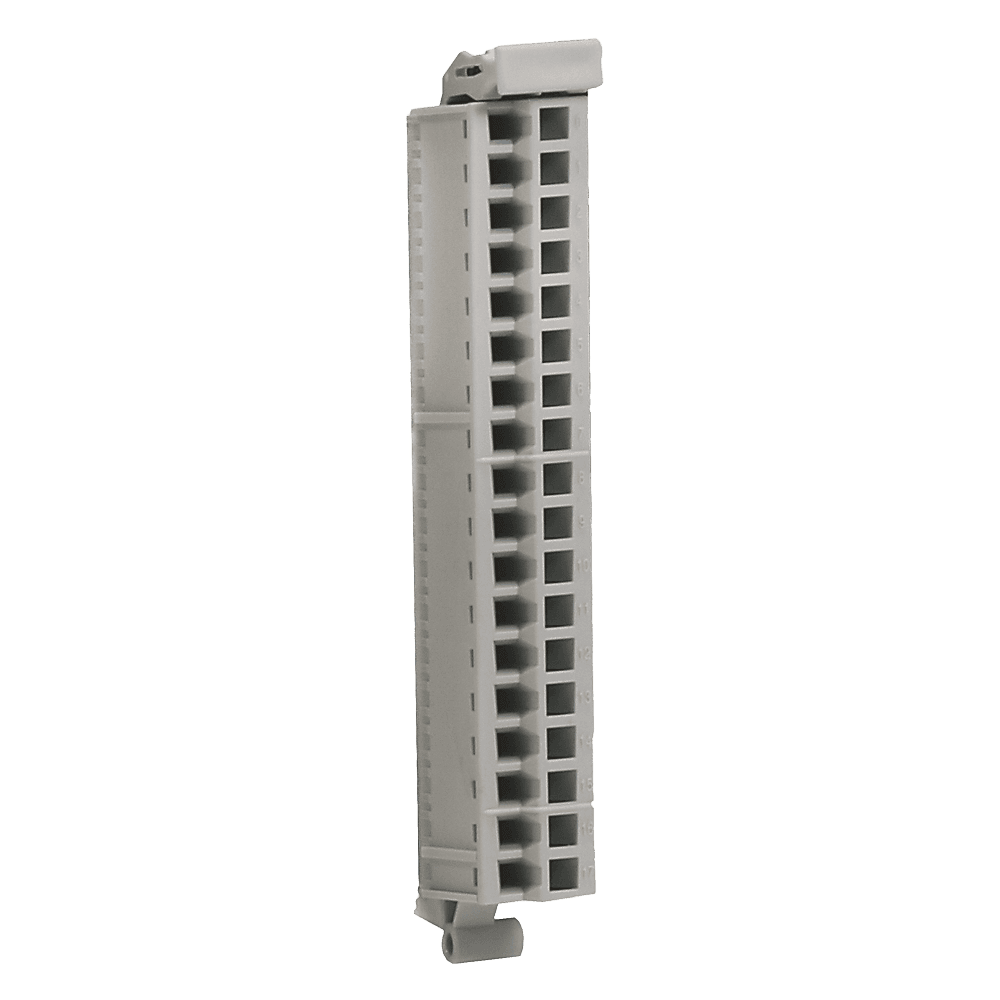

5069-RTB18-SPRING | removable terminal block; termination technology: Spring clamp; number of terminals: 18; voltage rating, maximum: 300 V AC
Manufacturer part number: 5069-RTB18-SPRINGESYS SKU: 5069RTB18SPRING
Net unit price, VAT 0%
€68.45
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Allen-Bradley (Rockwell Automation) 5069-RTB18-SPRING is a removable terminal block. Key selection facts are termination technology: Spring clamp; number of terminals: 18; voltage rating, maximum: 300 V AC.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use 5069-RTB18-SPRING in control-cabinet field wiring when the design calls for termination technology: Spring clamp.
- Choose 5069-RTB18-SPRING for control-cabinet field wiring that must provide number of terminals: 18.
- Before ordering 5069-RTB18-SPRING, verify voltage rating, maximum: 300 V AC against the control-cabinet field wiring design.
Key specifications
- Product type
- removable terminal block
- Number of terminals
- 18
- Termination technology
- Spring clamp
- Voltage rating, maximum
- 300 V AC
- Current rating, maximum
- 10 A
- Wire size
- 0.5…1.5 mm² (22…16 AWG)
Show additional verified specifications
- Wire strip length
- 10 mm
- Operating temperature
- 0…60 °C (32…140 °F)
- Terminal block configuration
- 5069 Compact I/O 18 pins Spring type terminal block kit in a pack of 1 pcs
- System family
- 5069 CompactLogix/Compact GuardLogix Products and Accessories
Lifecycle
- Status
- Active
Compatibility and related parts
Allen-Bradley Compact 5000 I/O system
System: Documented manufacturer system or product-family context; does not imply interchangeability with every member
Official manufacturer documents
- Allen-Bradley (Rockwell Automation) 5069-RTB18-SPRING official product evidence (Technical document, en)Opens in a new window
- Official product cutsheet (Datasheet, en)Opens in a new window
- Download (PDF) (Datasheet, en)Opens in a new window
- Compact 5000 I/O Modules and EtherNet/IP Adapters Technical Data (5069-TD001) (Manual, en)Opens in a new window
