Rittal
Rittal 9340170 RiLine base tray
Manufacturer part number: 9340170ESYS SKU: 9340170
Net unit price, VAT 0%
€50.71
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45

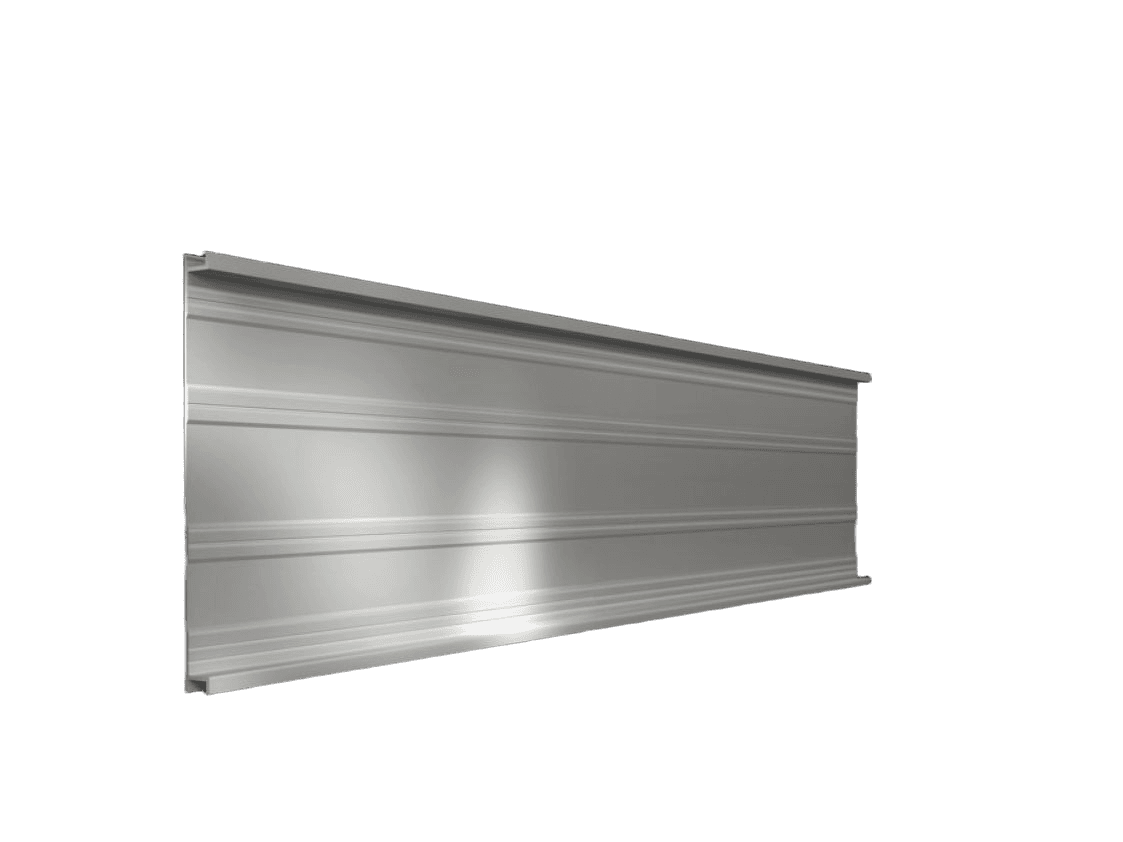

Rittal 9340170 is the exact RiLine base tray for rear contact protection for a three-pole flat-copper busbar system. Key values: Length: 2400 mm; Number of poles: 3; Busbar type: Flat copper; Material: Hard PVC; Flammability class: UL 94 V-0.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Exact-order-code replacement in equipment used for rear contact protection for a three-pole flat-copper busbar system
- New installation specified for exact order code Rittal 9340170
- Maintenance stock for installed Rittal 9340170 units
Key specifications
- Length
- 2400 mm
- Number of poles
- 3
- Busbar type
- Flat copper
- Material
- Hard PVC
- Flammability class
- UL 94 V-0
- Colour
- RAL 7035
Show additional verified specifications
- Contact protection
- Rear
- Compatible busbar supports
- 9341.000 and 9341.050
- Compatible system
- RiLine 60 mm busbar system
Lifecycle
- Status
- Active
Compatibility and related parts
RiLine 60 mm busbar system
System: Compatible RiLine 60 mm busbar system
9341.000
Accessory: Compatible Rittal busbar support
9341.050
Accessory: Compatible Rittal busbar support
