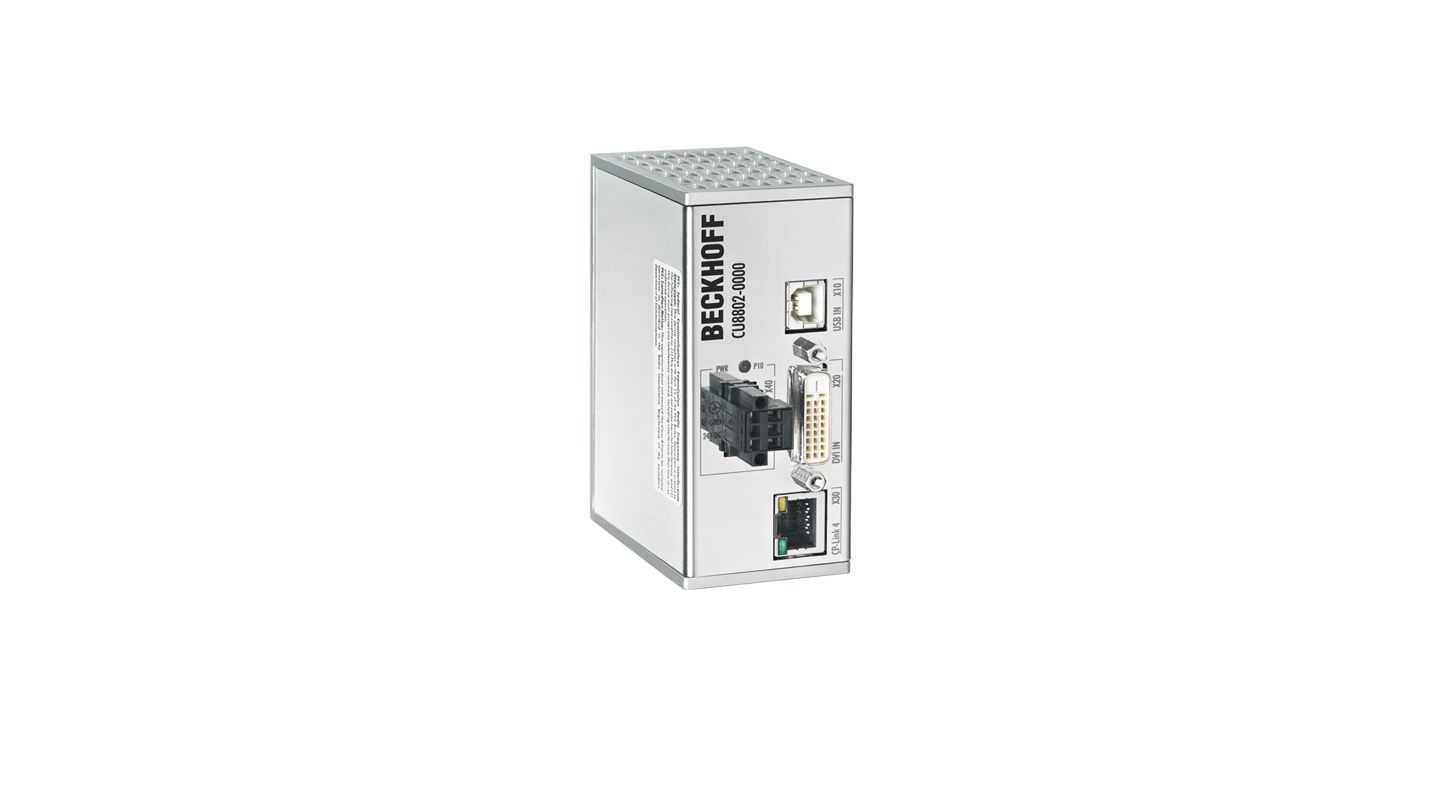

CU8802-0000 | CP-Link 4 transmitter; dimensions (W x H x D): 45 mm x 100 mm x 80 mm; protection rating: IP20; housing: metal housing for DIN rail installation

Typical applications

• Use CU8802-0000 in the documented equipment configuration when the design calls for dimensions (W x H x D): 45 mm x 100 mm x 80 mm.
• Choose CU8802-0000 for the documented equipment configuration that must provide protection rating: IP20.
• Before ordering CU8802-0000, verify housing: metal housing for DIN rail installation against the the documented equipment configuration design.

Key specifications

Product type

CP-Link 4 transmitter

Device type detail

CP-Link 4 Extender Tx for connecting a Control Panel with CP-Link 4 interface to a PC with DVI interface, power supply for the Control Panel by connecting 24 V to the Control Panel, The Two Cable Display Link

Housing

metal housing for DIN rail installation

Interfaces

1 USB input with USB B socket to be connected to the PC in maximum 1 m distance; 1 DVI input with DVI-D socket to be connected to the PC in maximum 1 m distance; 1 CP-Link 4 output with RJ45 socket for up to 100 m Cat.6A cable

Connector cable

1 m USB 2.0 USB-A to USB-B 1 m DVI to DVI, for PCs with DVI interface

Power supply

24 V DC
