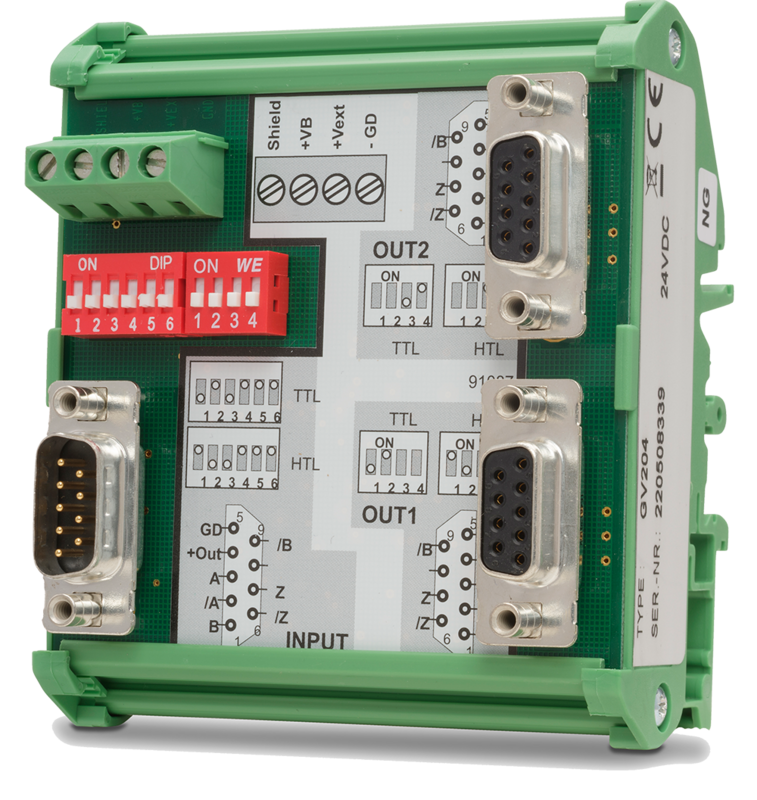

motrona GV204 incremental-encoder pulse splitter
Manufacturer part number: GV204ESYS SKU: GV204
Net unit price, VAT 0%
€235.38
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
motrona GV204 is the exact incremental-encoder pulse splitter for duplicating one encoder signal into two independently level-selectable outputs. Key values: Input signal: TTL / RS-422 or HTL; Maximum TTL frequency: 750 kHz; Maximum HTL frequency: 350 kHz; Number of outputs: 2; Supply voltage: 5-30 V DC or 10-30 V DC.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Exact-order-code replacement in equipment used for duplicating one encoder signal into two independently level-selectable outputs
- New installation specified for exact order code motrona GV204
- Maintenance stock for installed motrona GV204 units
Key specifications
- Input signal
- TTL / RS-422 or HTL
- Maximum TTL frequency
- 750 kHz
- Maximum HTL frequency
- 350 kHz
- Number of outputs
- 2
- Output levels
- TTL 5 V or HTL 10-30 V per output
- Supply voltage
- 5-30 V DC or 10-30 V DC
Show additional verified specifications
- Encoder supply
- 5.3 V, maximum 150 mA
- Connection
- 9-pin D-sub
- Dimensions
- 85 x 90 x 50 mm
- Mounting
- 35 mm DIN rail
- Protection rating
- IP20
Lifecycle
- Status
- Mature
Compatibility and related parts
Supply voltage: 5-30 V DC or 10-30 V DC
System: Electrical compatibility - Supply voltage: 5-30 V DC or 10-30 V DC
