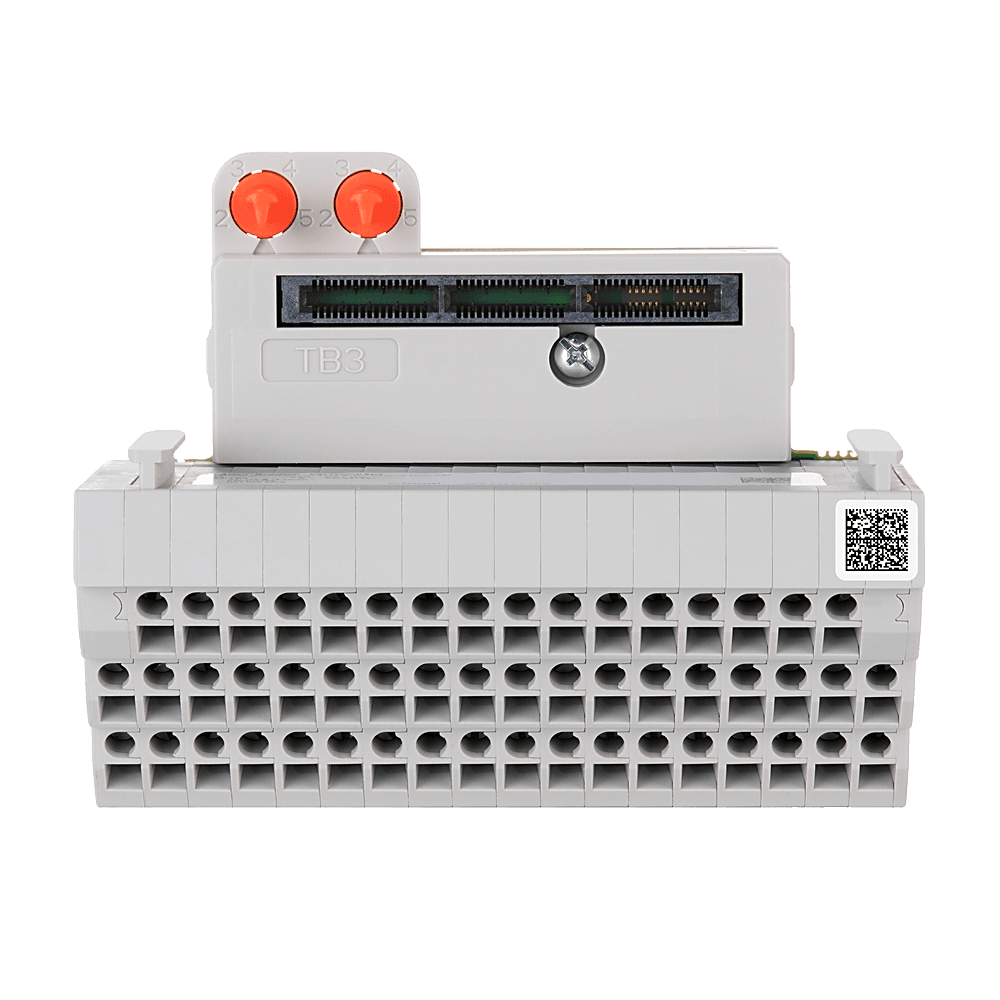

5094-RTB3 | removable terminal block; termination technology: Screw clamp; input/output rating, maximum: 2 A @ 32 V DC; sensor/actuator power, maximum: 10 A @ 18…32 V DC

Typical applications

• Use 5094-RTB3 in control-cabinet field wiring when the design calls for termination technology: Screw clamp.
• Choose 5094-RTB3 for control-cabinet field wiring that must provide input/output rating, maximum: 2 A @ 32 V DC.
• Before ordering 5094-RTB3, verify sensor/actuator power, maximum: 10 A @ 18…32 V DC against the control-cabinet field wiring design.

Key specifications

Product type

removable terminal block

Input/output rating, maximum

2 A @ 32 V DC

Sensor/actuator power, maximum

10 A @ 18…32 V DC

Wire size

0.34…2.5 mm² (22…14 AWG), solid or stranded copper, rated at least 105 °C

Insulation-stripping length

12 ± 1 mm for 0.34…2.5 mm² screw terminals

Operating temperature

-40…70 °C
