Siemens

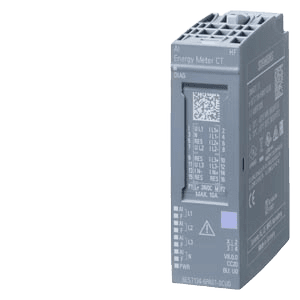

Siemens SIMATIC ET 200SP 6ES7134-6PA01-0CU0 energy-measurement module
Manufacturer part number: 6ES7134-6PA01-0CU0ESYS SKU: 6ES7134-6PA01-0CU0
Net unit price, VAT 0%
€276.64
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIMATIC ET 200SP 6ES7134-6PA01-0CU0 energy-measurement module. Key selection data: Current-transformer secondary current: 1 A / 5 A; Measurement functions: network analysis; Supply voltage: 24 V DC; Compatible BaseUnit: BU type U0; Width: 20 mm; Height: 73 mm.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Measuring energy, power and electrical quantities in a three-phase network
- Connecting current-transformer measurements to an ET 200SP station
- Replacement in an existing Siemens assembly when article number 6ES7134-6PA01-0CU0 matches
Key specifications
- Current-transformer secondary current
- 1 A / 5 A
- Measurement functions
- network analysis
- Supply voltage
- 24 V DC
- Compatible BaseUnit
- BU type U0
- Width
- 20 mm
- Height
- 73 mm
Show additional verified specifications
- Depth
- 58 mm
- Mounting position
- any
Lifecycle
- Status
- Active
Compatibility and related parts
BU type U0
System: Compatible BaseUnit
